STM RI 50 worm gearbox with F3 flange, item no. 2181015361: Ø 14 mm input shaft, Ø 24 mm hollow output, die-cast aluminium casing. Ratios selectable among the variants.
Gearboxes & Accessories
There are 101 products.
STM RMI 28, item no. 2100211521: gearbox designed for a PAM 56 motor with B14 fitting and a 14 mm hollow output. Reduction ratios selectable among the variants.
STM RMI 28 worm gearbox for PAM 56 B14 motor, 14 mm output bore, item no. 2100010321. Die-cast aluminium casing, ZI toothing; ratio selectable among the variants.
STM RMI 50, item no. 21003707: gearbox designed for a PAM 71 motor with B5 fitting and a 24 mm hollow output. Reduction ratios selectable among the variants.
STM RMI 50 worm gearbox for PAM 71 B5 motor, 24 mm output bore, item no. 2104101551. Die-cast aluminium casing, ZI toothing; ratio selectable among the variants.
STM U 110, item no. 2180238951: worm gearbox with cubic casing and 42 mm hollow output, can be matched with IEC, Brushless and NEMA motors. Ratios selectable among the variants.
STM U 40 square worm gearbox for motor, 18 mm output bore, item no. 2180231511. Cubic body with universal mounting; reduction ratio selectable among the variants.
STM U 50, item no. 2180231681: worm gearbox with cubic casing and 25 mm hollow output, can be matched with IEC, Brushless and NEMA motors. Ratios selectable among the variants.
STM U 63 square worm gearbox for motor, 25 mm output bore, item no. 2180210421. Cubic body with universal mounting; reduction ratio selectable among the variants.
STM U 75 square worm gearbox for motor, 28 mm output bore, item no. 2180234791. Cubic body with universal mounting; reduction ratio selectable among the variants.
STM U 90, item no. 2180238531: worm gearbox with cubic casing and 35 mm hollow output, can be matched with IEC, Brushless and NEMA motors. Ratios selectable among the variants.
STM VMF1 mechanical variator size 63, item no. 2200020027: continuous adjustment of the output speed with an operating handwheel. Speed range and torque to be confirmed.
STM VMF1 size 71, item no. 2200020037: oil-bath mechanical speed variator, adjusted with a handwheel even while the machine is running. Speed data to be confirmed.
STM VMF1 mechanical variator size 80, item no. 2200000047: continuous adjustment of the output speed with an operating handwheel. Speed range and torque to be confirmed.
STM VMF1 size 90, item no. 22000020057: oil-bath mechanical speed variator, adjusted with a handwheel even while the machine is running. Speed data to be confirmed.
STM torque arm for U 40 gearbox, item no. 2081010211: an accessory for shaft-mounted installation, it lets you fix the gearbox with a tie rod and limits the rotation of the body.
STM accessory item no. 2081010091 for the U 110 worm gearbox: a torque arm for fixing with a tie rod the gearbox mounted on the shaft, standard hollow output 42 mm.
STM accessory item no. 2081010061 for the U 50 worm gearbox: a torque arm for fixing with a tie rod the gearbox mounted on the shaft, standard hollow output 25 mm.
STM torque arm for U 63 gearbox, item no. 2081010251: an accessory for shaft-mounted installation, it lets you fix the gearbox with a tie rod and limits the rotation of the body.
STM torque arm for U 75 gearbox, item no. 2081010261: an accessory for shaft-mounted installation, it lets you fix the gearbox with a tie rod and limits the rotation of the body.

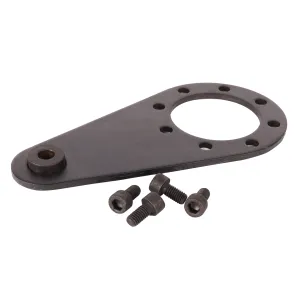

STM accessory item no. 2081010081 for the U 90 worm gearbox: a torque arm for fixing with a tie rod the gearbox mounted on the shaft, standard hollow output 35 mm.
