STM U 90, item no. 2180238531: worm gearbox with cubic casing and 35 mm hollow output, can be matched with IEC, Brushless and NEMA motors. Ratios selectable among the variants.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

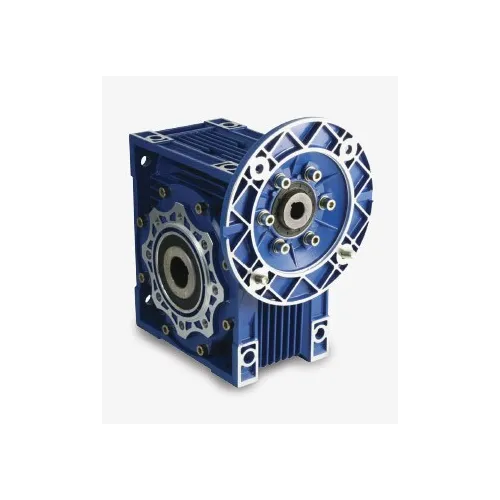

STM U 90 Worm Gearbox for Motor, Ø 35 mm Bore - Item No. 2180238531
Size 90 of the STM U series is a cubic-bodied worm gearbox with a 35 mm hollow output. With the coupling it matches IEC, Brushless and NEMA motors; for this size the catalogue lists IEC 80, 90, 100 and 112 motors. The reduction ratio is selectable among the variants. Item number 2180238531.
Technical Specifications
- Item No.: 2180238531
- Series and size: STM U 90
- Output: hollow shaft Ø 35 mm
- Shape: cubic, universal mounting
- Reduction ratio: to be chosen among the variants
- Brand: STM
Applications and Uses
- Industrial automation and special machines
- Replacement of existing worm gearboxes
- Plants with IEC and Brushless motors
More details
- Brand
- STM
- Code
- MEU9010
- Manufacturer code
- 2180238531
Attachments
Recommended accessories and spare parts
STM half coupling for U 75-90 worm gearbox, 24 mm bore, item no. 2450901431. A spare part for the motor-gearbox coupling; construction type to be confirmed before ordering.
STM motor flange for U 90 gearbox, PAM 90 B14 configuration, item no. 2450014081. It matches the IEC 90 motor to the gearbox: catalogue motor shaft 24 mm and flange 140 mm.
STM spare part item no. 2450900381: half coupling with 28 mm bore for sizes 75 and 90 of the U series gearboxes, to connect motor and gearbox. Type to be confirmed on the part fitted.
STM spare part item no. 2420814161: 35 mm single-ended slow shaft for the U 90 gearbox. Mounting kit complete with keys, washers and screws, for a hollow shaft of standard diameter.
STM spare part item no. 2450014281: motor connection flange for the U 90 worm gearbox, PAM 80 motor in B5 form, with 19 mm shaft and 200 mm flange in the catalogue.
