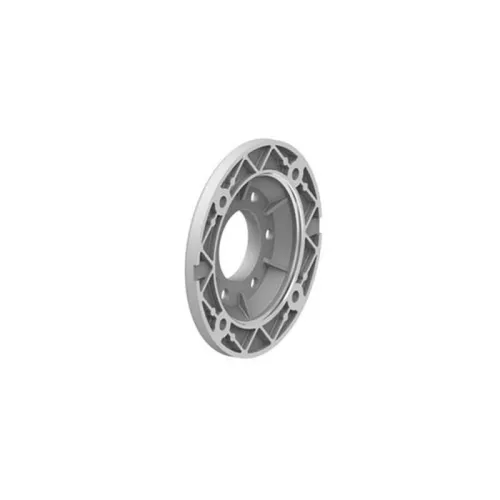

MOTOR FLANGE FOR U90 GEARBOX PAM90 B14

Code: MEU90PAM90B14
€34.60
VAT excluded: €28.36
In stock 2 pieces in stock Ships in 24/48 hours

Description

Motor Flange for STM U 90 Gearbox PAM 90 B14 - Item No. 2450014081


Size 90, PAM 90, B14 form: these are the three data that identify this motor flange for STM U series gearboxes. The manufacturer's catalogue associates the IEC 90 motor with a 24 mm shaft and a 140 mm flange. In the standard version the four fixing holes are arranged at 45 degrees to the axes. Item No. 2450014081.

Technical Specifications

  • Type: Motor flange
  • Gearbox: STM U series, size 90
  • Motor interface: PAM 90
  • Fixing form: B14
  • Catalogue motor shaft: 24 mm
  • Catalogue motor flange: 140 mm
  • Item No.: 2450014081
  • Brand: STM

Applications and Uses

  • Gearbox-motor coupling in B14 form
  • Repair work on material handling plants
  • Completing a U 90 gearbox to be matched with a motor

More details

Brand
STM
Code
MEU90PAM90B14
Manufacturer code
2450014081
