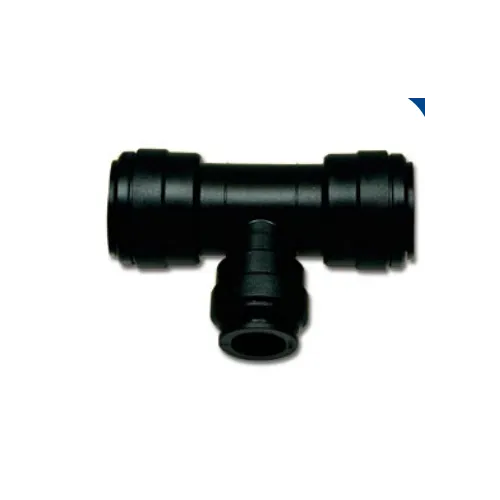

PVC INTERMEDIATE TEE FITTING

Code: TRJTI15
€5.40
VAT excluded: €4.43
Size : D. 15
In stock 4 pieces in stock Ships in 24/48 hours

Description

Intermediate Tee Push-Fit Fitting Spiralflex for Aluminium Pipe - Item No. JTI


Spiralflex JTI intermediate tee push-fit fitting, among the acetal resin push-fit fittings supplied for anodised aluminium pipe air systems. No threading or tools are needed: the pipe is pushed into the fitting as far as the stop, the collet with stainless steel teeth holds it, and the harder it is pulled the tighter it grips, while an O-ring ensures the seal. The system with push-fit fittings works up to 10 bar. The JTI has three connections of the same diameter arranged as a tee and is used to branch a drop or a secondary branch off the main line. Variants for 15 and 22 mm pipe.

Technical Specifications

  • Type: Intermediate tee push-fit fitting
  • Pipe: 15 or 22 mm, among the variants
  • Material: Acetal resin
  • Connection: Push-in, stainless steel collet and O-ring
  • Maximum pressure with push-fit fittings: 10 bar
  • Item No.: JTI
  • Brand: SPIRALFLEX

Applications and Uses

  • Branches and drops on aluminium air systems
  • Extending existing systems
  • Air systems for workshops and laboratories

More details

Brand
SPIRALFLEX
Code
TRJTI15
Manufacturer code
JTI 15
