CAMOZZI VSC QUICK EXHAUST VALVE

Code: CLVSC52212
€13.10
VAT excluded: €10.74
Size : 1/2"
In stock 10 pieces in stock Ships in 24/48 hours

Description

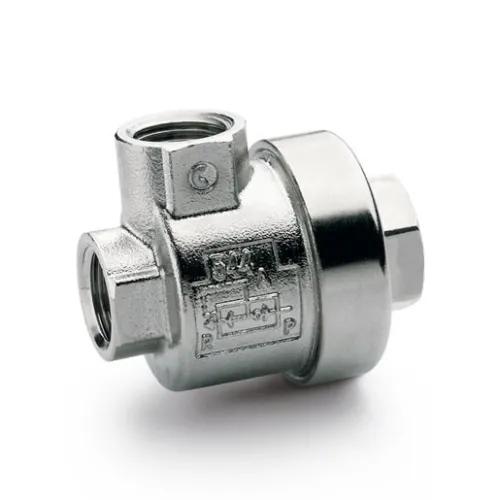

Quick Exhaust Valve Camozzi VSC


Camozzi VSC quick exhaust valve, to increase the speed of cylinders or quickly depressurise a tank. It is fitted with a nipple directly on the cylinder port: when the control valve exhausts, the air in the chamber leaves immediately through the VSC instead of returning along the tube, and the rod accelerates. The manufacturer recommends a silencer on the exhaust. Poppet construction, brass body and Desmopan seal, mounting in any position, temperature from 0 to 80 °C. Variants VSC 588-1/8 with 630 Nl/min at the inlet and 940 at the exhaust, VSC 544-1/4 with 860 and 1600 Nl/min, VSC 522-1/2 with 4700 and 6250 Nl/min, all up to 12 bar.

Technical Specifications

  • Type: Quick exhaust valve
  • Ports: G1/8 (588), G1/4 (544), G1/2 (522), among the variants
  • Exhaust flow: 940, 1600 or 6250 Nl/min depending on size
  • Maximum pressure: 12 bar
  • Materials: Brass body, Desmopan seal
  • Temperature: 0 to 80 °C
  • Item No.: VSC
  • Brand: CAMOZZI

Applications and Uses

  • Increasing the return speed of cylinders
  • Quick exhaust of tanks and volumes
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CLVSC52212
Manufacturer code
VSC 522-1/2
