Camozzi Mod. S pin for hinges of ISO 15552 cylinders of Series 61 and 63: 303 stainless steel pin with two circlips. Bores from 32 to 100 mm selectable among the variants.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

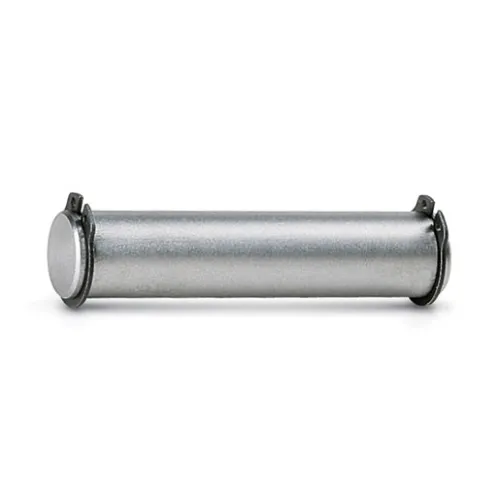

Pin for Hinges Camozzi Mod. S ISO 15552 Cylinders
Camozzi Mod. S pin, an accessory for ISO 15552 cylinders of the Series 61 and 63, also listed for the Series 40, 41 and 60. It is the pin that joins the Mod. C female hinge to the Mod. L male hinge, or to a machine support, and lets the cylinder swing during the stroke. The supply includes the 303 stainless steel pin and two steel circlips that hold it in place. The diameter varies with the bore: 10 mm for the 32, 12 mm for 40 and 50, 16 mm for 63 and 80, 20 mm for the 100. Choose the size among the variants according to the cylinder bore.
Technical Specifications
- Type: Hinge pin
- Cylinder standard: ISO 15552
- Series: 61 and 63 (also 40, 41, 60)
- Material: 303 stainless steel pin, steel circlips
- Supply: 1 pin + 2 circlips
- Diameter: 10 to 20 mm depending on bore
- Bores: 32 to 100 mm, among the variants
- Item No.: S
- Brand: CAMOZZI
Applications and Uses
- Swinging mounting of ISO 15552 cylinders
- Combining female and male hinges
- Maintenance and repair of pneumatic circuits
More details
- Brand
- CAMOZZI
- Code
- CLS100
- Manufacturer code
- S-100
