Description

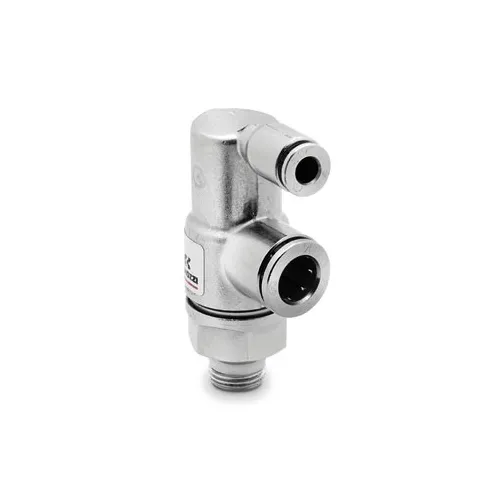

One-Way Blocking Valve Camozzi VBU
Camozzi VBU one-way blocking valve, designed for direct mounting on the ports of cylinders. It holds the air in the cylinder chamber and locks it in position when the pilot signal is missing, for example in the event of a pressure drop or an emergency stop: it opens only when the control pressure arrives. It can also be used as a high-flow valve for blowing, cleaning parts and filling volumes, supplying it from the male port. Poppet construction in OT58 brass, NBR seals, stainless steel springs. It works from 0.3 to 10 bar, from 0 to 80 °C. Variants VBU 1/8, 5.5 mm passage, and VBU 1/4, 8 mm passage.
Technical Specifications
- Type: Pilot-operated one-way blocking valve
- Ports: G1/8 or G1/4, among the variants
- Nominal passage: 5.5 mm (1/8) or 8 mm (1/4)
- Operating pressure: 0.3 to 10 bar (nominal 6)
- Opening pressure: 0.3 bar
- Materials: OT58 brass, NBR, stainless steel springs, PTFE
- Temperature: 0 to 80 °C (from -20 °C with dry air)
- Item No.: VBU
- Brand: CAMOZZI
Applications and Uses
- Locking cylinders in the event of air loss
- Safety on lifting and vertical loads
- Blowing and filling volumes
More details
- Brand
- CAMOZZI
- Code
- CLVBU14
- EAN13
- 8051707058230
- Manufacturer code
- 30-7710-3057
