CAMOZZI MX31-FR-000 FILTER+REGULATOR 1"

Code: CLMX31FR00
€88.80
VAT excluded: €72.79
Size : 1"
In stock 2 pieces in stock Ships in 24/48 hours

Description

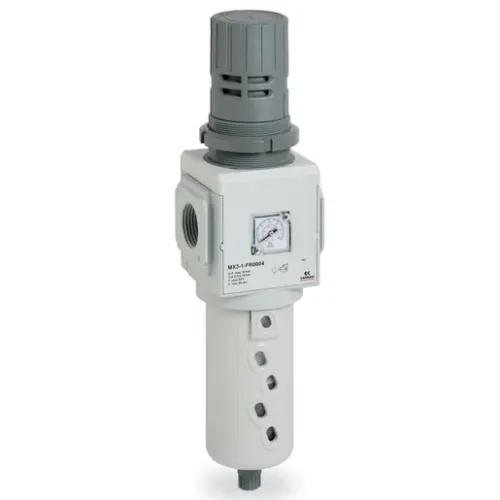

Camozzi Series MX3 G1 25 µm Filter-Regulator - Item No. MX3-1-FR0000


Camozzi MX3-1-FR0000 filter-regulator of the Series MX, size 3, with G1 ports: in a single body it filters the compressed air and reduces its pressure to the value required by the users, with a smaller footprint than a separate filter and regulator. The 25 µm polyethylene filter element retains impurities and condensate, discharged by the semi-automatic/manual device; the regulator has a secondary exhaust and adjusts from 0.5 to 10 bar. The knob can be locked against tampering and the bowl has a safety locking system. Aluminium body, polycarbonate bowl with guard. Inlet pressure up to 16 bar within 50 °C. Gauge not included: the G1/4 hole is plugged.

Technical Specifications

  • Type: Filter-regulator
  • Series: MX size 3
  • Ports: G1
  • Filtration: 25 µm, with relieving
  • Adjustment range: 0.5 to 10 bar
  • Operating pressure: 0.3 to 16 bar up to 50 °C, up to 10 bar up to 60 °C
  • Condensate drain: Semi-automatic/manual
  • Gauge: Not included, G1/4 port
  • Materials: Aluminium body, polycarbonate bowl
  • Weight: 1.3 kg
  • Item No.: MX3-1-FR0000
  • Brand: CAMOZZI

Applications and Uses

  • Air treatment at the inlet of high-flow lines and machines
  • Reducing pressure for users and equipment
  • Industrial systems with piping of size 1

More details

Brand
CAMOZZI
Code
CLMX31FR00
Manufacturer code
MX3-1-FR0000
