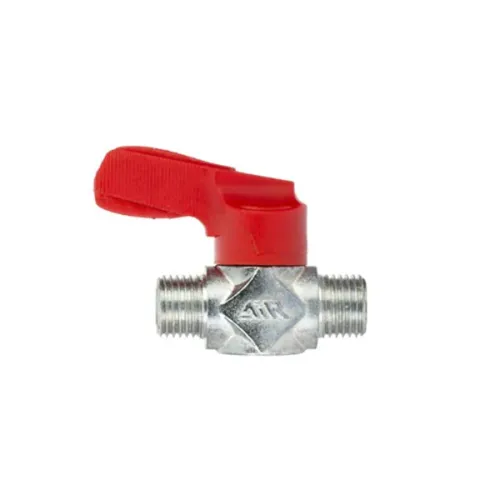

AIR FITTING ART. 233 MALE-MALE

Generic brass fittings for pneumatic systems, compatible with standard compressed air hoses and fittings.

MX Series filter-regulators consist of a filter and an integrated pressure reducer.

They are therefore compact and suitable for pre-filtering functions.

Available with or without relieving, they are fitted with a diaphragm valve for direct pressure regulation and an integrated manual or automatic condensate drain.

They are also fitted with a recessed pressure gauge.

The MX Series offers multi-sector solutions that save installation time, space and costs.

Filter element 25μm

Regulator type Without bypass valve

Working pressure 0.5 ÷ 10

Series name MC

Size G1/4

Pressure gauge Without pressure gauge (standard)

Condensate drain Manual-semi-automatic, with relieving

Function FILTER-REGULATOR

Connections G1/4

ANI 31/A4 (Air 11) pressure regulator for compressed air, with 40 mm round pressure gauge, 0-16 bar scale, satin-finish aluminium body and 1/4 BSP connections.

Generic brass fittings for pneumatic systems, compatible with standard compressed air hoses and fittings.

Compressed air check valve with male 3/4”–male 3/4” connections for one-way flow in pneumatic systems.

Giant air tap model 19B with male-male connections for flow control in pneumatic systems.

MX Series air treatment components feature a modern, linear, compact design with high performance.

The perfect integration of metal alloys and technopolymers has made it possible to create a product that is reliable, lightweight and robust at the same time.

Thanks to the new modular concept, the assembly of the components is also simplified.

Proportional lubricators allow precision dosing.

The MX Series offers multi-sector solutions that save installation time, space and costs.

380 V 3-way air pressure switch for pressure control with flow rate up to 10 bar and motor power 5,5–7.5 kW.

KIT FOR MC FILTER 1/4"

Combined air regulator and filter unit model ANI AH100601 with 3/8” connection for compressors and pneumatic systems.

Compressed air safety valve designed for protection against overpressure in systems and compressors.

Series name N

Construction type Oil mist

Bowl material Transparent PA12

Size Standard bowl (37 cm³)

Function LUBRICATOR

Connections G1/4

Anodised pneumatic manifold 320/2A with 4 ports of 1/2” for compressed air branching in industrial systems.

Minimum working pressure [Bar] 0.5 ÷ 10 bar

Regulator type Pressure regulator

Series name MX

Construction type Relieving

Size G3/4 - G1

Pressure gauge With recessed 0-12 pressure gauge, working pressure 0.5 ÷ 10 bar

Connections G1

Flow direction Left to right

Pneumatic manifold 320/1A in nylon with 3 ports of 1/2” for compressed air branching in industrial systems.
