CAMOZZI MX2 FILTER+REGULATOR 3/8 MX2-3/8-FR0304

Code: CLMX238FR0304 EAN: 8051707426817
€94.20
VAT excluded: €77.21
Size : MX2-3/8-FR0304 3/8"
In stock 1 piece in stock Ships in 24/48 hours

Description

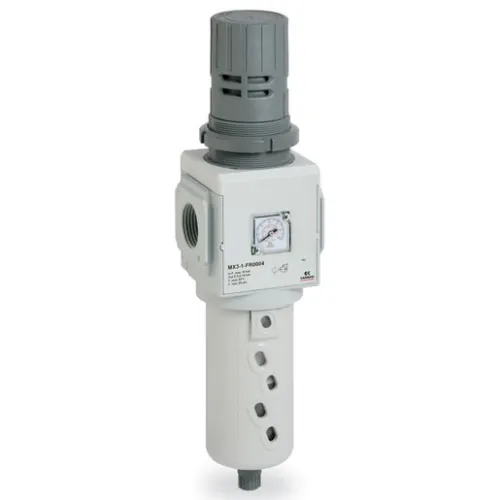

Camozzi Series MX2 G3/8 Filter-Regulator with Automatic Drain and Gauge - Item No. MX2-3/8-FR0304


Camozzi MX2-3/8-FR0304 filter-regulator of the Series MX, size 2, with G3/8 ports: it filters the compressed air and reduces it to the required pressure in a single body. The 25 µm filter element retains impurities and condensate, which is removed by the automatic float drain without operator intervention. The regulator with secondary exhaust adjusts from 0.5 to 10 bar and the built-in 0 to 12 bar gauge shows the outlet pressure. Lockable knob, polymer bowl with safety lock, aluminium body. With the automatic drain the inlet pressure ranges from 1.5 to 12 bar. Bowl capacity 55 cm³, weight 0.8 kg.

Technical Specifications

  • Type: Filter-regulator
  • Series: MX size 2
  • Ports: G3/8
  • Filtration: 25 µm, with relieving
  • Condensate drain: Automatic float
  • Adjustment range: 0.5 to 10 bar
  • Gauge: Built-in, 0-12 bar
  • Inlet pressure: 1.5 to 12 bar
  • Bowl capacity: 55 cm³
  • Weight: 0.8 kg
  • Item No.: MX2-3/8-FR0304
  • Brand: CAMOZZI

Applications and Uses

  • Air treatment at the inlet of machines and lines
  • Lines with a lot of condensate or little supervision
  • Compressed air systems and lines in workshops and industry

More details

Brand
CAMOZZI
Code
CLMX238FR0304
EAN13
8051707426817
Manufacturer code
MX2-3/8-FR0304

Attachments
