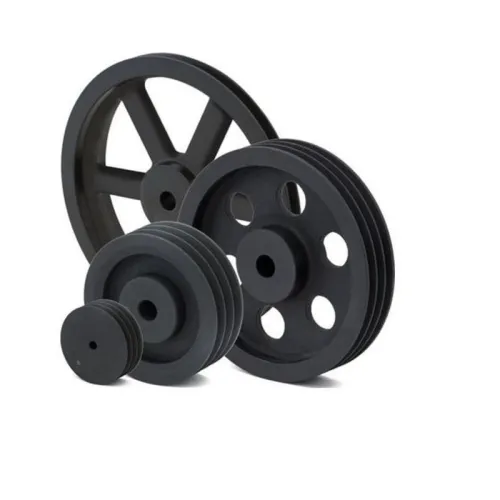

CAST IRON MONOBLOCK PULLEY SECTION B 5 GROOVES

Code: PU1005B
€39.50
VAT excluded: €32.38
Size : 100 5 B
In stock 1 piece in stock Ships in 24/48 hours

Description

One-piece Cast Iron Pulley, B Section, 5 Grooves - Item No. PT100SPB5


One-piece cast iron V-pulley with solid hub and 5 grooves, B section: it takes B and SPB belts. The grooves follow DIN 2211 and ISO 4183 and SIT pulleys are turned on numerically controlled machines; the groove angle is 34 degrees for the smaller diameters and 38 for the larger ones. Made of DIN 1691 GG20 - GG25 cast iron, with a surface treatment that protects it from oxidation, the pulley works at up to 35 m/s peripheral speed. The pitch diameter, from 70 to 500 mm, is selected among the variants. Since the bore is not finished, the solid hub must be bored and keyed to the size of the shaft; in the SIT catalogue these pulleys are not balanced.

Technical Specifications

  • Type: one-piece PT V-pulley with solid hub
  • Material: cast iron DIN 1691 GG20 - GG25
  • Section: B, B and SPB belts
  • Number of grooves: 5
  • Pitch diameter: 70 to 500 mm, to be chosen among the variants
  • Grooves: according to DIN 2211 - ISO 4183
  • Bore: unfinished, to be machined on the solid hub
  • Maximum peripheral speed: 35 m/s
  • Item No.: PT100SPB5
  • Brand: SIT

Applications and Uses

  • Electric motors, compressors and pumps
  • Agricultural machinery and processing plants
  • Fans and extractors

More details

Brand
SIT
Code
PU1005B
Manufacturer code
PT100SPB5
