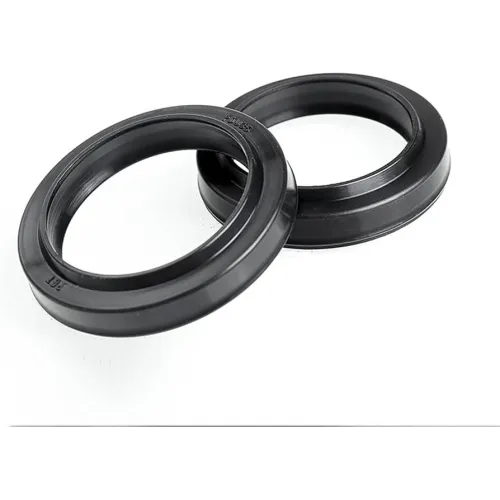

POLYPAC WRM TYPE SEALS, FROM 047070 TO 255287

Seal type Polypac B 216177/1 with dimensions 55 mm (D) × 45 mm (d) × 10 mm (E), designed for rod sealing in hydraulic cylinders and mechanical applications with reciprocating motion.

Polypac B type seals from series 196118 to 295255, designed for sealing on the rod of hydraulic cylinders and mechanical applications. Made of elastomeric rubber with anti-extrusion support, they ensure effective sealing against fluids and contaminants in transmissions and in cylinders with reciprocating motion.

URFU series seals with self-acting operation, tight tolerances and precision profiles. High operating temperature and exceptional wear resistance for demanding applications.

Polypac B type seals, rod seals for hydraulic and pneumatic cylinders, available in various sizes (e.g. B 075047 → 19×12×6.3 mm … B 188157 → 48×40×6.5 mm), suitable for various rod diameters and mechanical applications.

B series rod seals in fabric-reinforced rubber and NBR in a single piece, ideal for single-acting hydraulic cylinders. Available in various sizes, they offer high resistance to abrasion and extrusion.

DBM series seals for double-acting pistons made up of 5 elements: NBR, polyester and POM. Ideal for one-piece pistons in standard operating conditions with pressures up to 30 MPa.

CH series packing seals in fabric-reinforced rubber for pistons of double-acting hydraulic cylinders. Available in sets of 3 or 5 elements, suitable for medium pressures and fitting on one-piece pistons.

SM Selemaster series seals for rods in extremely severe conditions. Reinforced multi-element structure for high pressures up to 70 MPa, resistant to misalignment and vibration.

DPS series seals for pistons made up of fabric-reinforced NBR and POM rings. Designed for pressures up to 35 MPa, ideal for double-acting cylinders in industrial applications.

GS series seals for applications on cylinder rods or pistons. Compact and versatile design, suitable for standard industrial uses with good wear resistance.

Polypac B type seals in the range from 300225 to 444393, designed for rod sealing in hydraulic cylinders and mechanical applications requiring protection against fluid leakage and contamination. These seals are available in various inner/outer diameter and thickness sizes to suit different rod diameters.

DSM Selemaster series seals for pistons in extremely severe conditions. Reinforced multi-element structure for high and very high pressures, resistant to misalignment and vibration.

I/DWR series guide rings for rods in acetal resin. Precision-moulded to guide the cylinder rod, prevent metal-to-metal contact and absorb radial forces.

Seal type Polypac B 401354 with dimensions 102 mm (D) × 90 mm (d) × 9.6 mm (E), designed for rod sealing in hydraulic cylinders and mechanical applications with reciprocating motion.

Seal type Polypac B 433334 with dimensions 110 mm (D) × 85 mm (d) × 13.5 mm (E), designed for rod sealing in hydraulic cylinders and mechanical applications with reciprocating motion.
