TECNOTEX

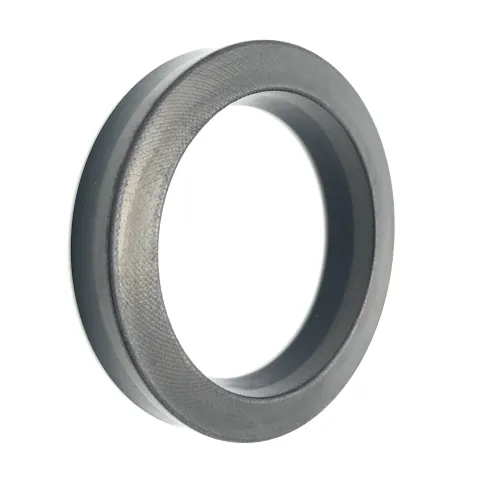

POLYPAC B TYPE SEAL 401354 102X90X9,6

Code: POB401354
€7.60
VAT excluded: €6.23
In stock 2 pieces in stock Ships in 24/48 hours

Description

The Polypac B type seal 401354 is a rod seal for hydraulic cylinders, made of NBR rubber with an integrated anti-extrusion support, designed to ensure:

  • High wear resistance

  • Protection against extrusion even under pressure

  • Reliable sealing against fluids and external contaminants

Main features:

  • Type: Polypac B (rod seal)

  • Dimensions: 102 mm (D) × 90 mm (d) × 9.6 mm (E)

  • Material: NBR rubber with anti-extrusion support

  • Function: seals the interface between rod and cylinder, preventing fluid leaks and the ingress of contaminants

  • Typical applications: hydraulic cylinders, linear actuators, industrial machinery

  • Benefits: easy to fit, wear resistance, reliable performance in dynamic conditions

⚠️ Note: To ensure optimum sealing, the seal must be matched to the rod diameter and the cylinder groove.

More details

Brand
TECNOTEX
Code
POB401354
Manufacturer code
POB401354
