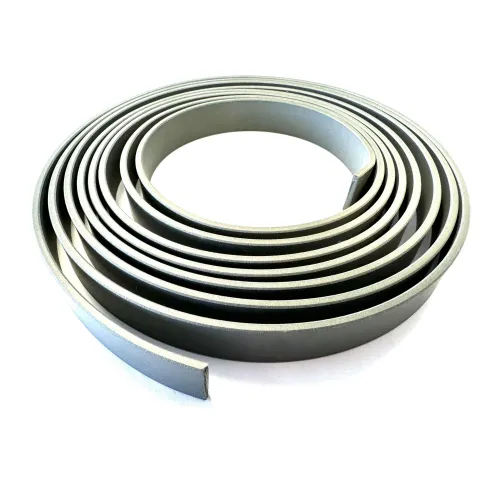

GUIDE RING FOR CYLINDERS, PTFE+BRONZE

GUIDE RING FOR CYLINDERS, PTFE+BRONZE

€13.90
VAT included Delivery in 24/48 hours
Size : 19,5X2
Quantity
local_shipping AVAILABLE

82 items

Guide ring for cylinders in PTFE + bronze, designed to ensure smooth sliding, reduced wear and long service life even in demanding conditions. Ideal for linear guides, pneumatic/hydraulic cylinders and mechanical applications with sliding contact.

Guarantee safe & secure checkout

The PTFE + bronze guide ring for cylinders is a high-performance sliding component designed for applications requiring low friction, vibration absorption and reduced surface wear.
Made up of a layer of PTFE (polytetrafluoroethylene) sintered onto a porous bronze base, it combines the advantages of both surfaces:

  • PTFE: offers very low friction, minimal sliding resistance and good self-lubricating properties.

  • Bronze: provides rigidity, resistance to deformation and load capacity, distributing contact loads evenly.

This combination is particularly suitable for fitting in:

  • Pneumatic and hydraulic cylinders, as a guide element for rods or pistons.

  • Linear sliding guides with alternating loads.

  • Industrial machines with reciprocating or continuous high-frequency movement.

The guide ring is available in various sizes and thicknesses, to be chosen according to the diameter of the cylinder or guide shaft, the operating speed and the type of load applied.
It is designed to deliver quiet operation, low maintenance and long service life, especially in systems where the lubricating film may be intermittent or insufficient.

⚠️ Note: choosing the correct size and thickness of the ring is essential to ensure optimal alignment and the expected load capacity in your system.

GU17N360TM
82 items

Specific References

MPN
NASTRO 19,5X2
