TELWIN TECHNOLOGY 238XT CE/MPGE INVERTER WELDER 220V +ACCESSORIES

Code: SD815027 EAN: 8004897165806
€540.00
VAT excluded: €442.62
In stock 1 piece in stock Ships in 24/48 hours

Description

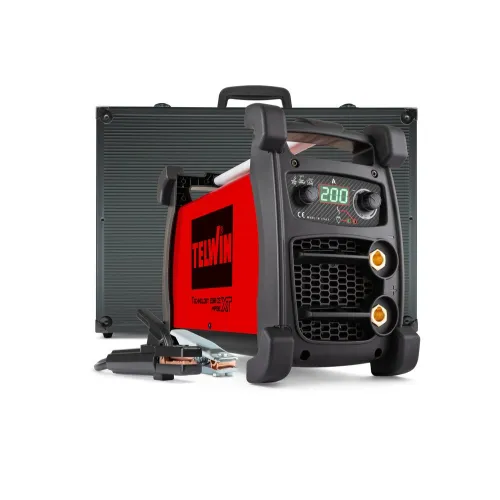

Telwin Technology 238 XT CE/MPGE Inverter Electrode Welder with Case - Item No. 816258


Telwin Technology 238 XT CE/MPGE inverter welder, code 816258, for electrode welding and scratch-start TIG in direct current. It welds rutile, basic, stainless steel and cast iron electrodes and also cellulosic ones, used on pipelines, from 1.6 to 4 mm; arc force and hot start are adjusted according to the electrode and there is anti-stick. MPGE protection allows use with a generator of at least 10 kW. Single-phase 230 V supply, current from 5 to 200 A, 200 A at 35 per cent and 140 A at 60 per cent to EN 60974-1. 50 mm quick connectors. IP23, class F, 10.55 kg. In an aluminium case with 50 mm² cables and Toledo 300 and Dallas 300 holders.

Technical Specifications

  • Type: MMA and scratch-start TIG inverter welder
  • Supply: 230 V single-phase
  • Current: from 5 to 200 A
  • Duty cycle: 200 A at 35, 140 A at 60 per cent (EN 60974-1)
  • Electrodes: from 1.6 to 4 mm, including cellulosic
  • Functions: MPGE, adaptive arc force and hot start, anti-stick
  • Protection: IP23, class F
  • Weight: 10.55 kg
  • Supplied: Aluminium case, 50 mm² cables, Toledo 300 and Dallas 300 holders
  • Item No.: 816258
  • Brand: TELWIN

Applications and Uses

  • Pipeline welding with cellulosic electrodes
  • Metalwork and building sites
  • Work with a generator

More details

Brand
TELWIN
Code
SD815027
EAN13
8004897165806
Manufacturer code
816258
