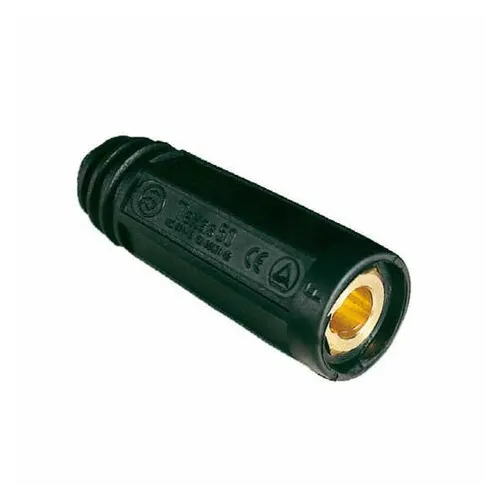

MALE CABLE CONNECTOR TEXAS

Code: ASGI25F EAN: 8028485146602
€3.20
VAT excluded: €2.62
Size : FEMALE X CABLE 25 mmq HOLE MM.9
In stock 11 pieces in stock Ships in 24/48 hours

Description

Male and Female Cable Coupler for Welding Cables Sacit


Sacit cable coupler for joining two welding cables or extending them: the male plug is fitted on one cable, the female socket on the other, and they are connected with a push-in fitting and a quarter turn. The body is made of brass, coated with elastomeric insulating material resistant to heat and humidity, with an insulation resistance above 2 MOhm; the reference standard is IEC 60974-12. The variants cover cables from 25 to 95 mm²: in the Sacit series the connectors for 10-25 mm² cable withstand 200 A at 60 per cent and those for 95 mm² up to 500 A. The item number corresponds to the male plug for 95 mm² cable.

Technical Specifications

  • Type: Cable coupler (free plug and socket)
  • Material: Brass with elastomeric insulating coating
  • Standard: IEC 60974-12
  • Cable cross-section: from 25 to 95 mm², among the variants
  • Current: from 200 A (10-25 mm²) to 500 A (95 mm²) at 60 per cent
  • Item No.: CX0524
  • Brand: SACIT

Applications and Uses

  • Extensions of welding cables
  • Quick connection of holders and clamps
  • Workshops and building sites

More details

Brand
SACIT
Code
ASGI25F
EAN13
8028485004834
Manufacturer code
CX0540
