CABLE LUG FOR SINGLE-CORE CABLE, SCREW TYPE

Code: ASCA16 EAN: 8028485153006
€1.80
VAT excluded: €1.48
Size : A/16
In stock 12 pieces in stock Ships in 24/48 hours

Description

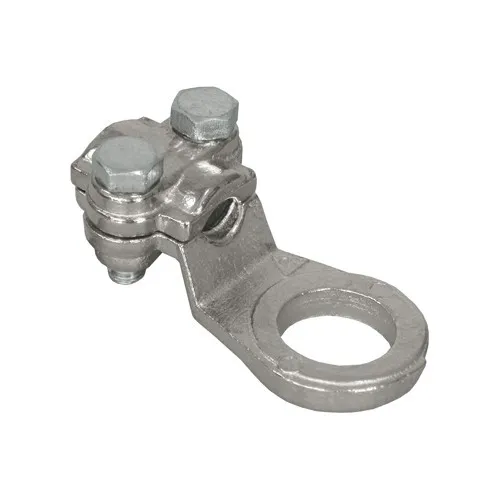

Screw-Type Cable Lug for Welding Cables Sacit TEX-2 16-50 mm²


Sacit clamp-type cable lug of the TEX-2 series, for connecting welding cables without crimping: the cable is tightened into the body with two hexagon-head bolts, which are tightened with a spanner. The body is made of nickel-plated brass and the bolts of galvanised steel; the series complies with the EN 61238-1 standard for power cable connections. The variants cover cross-sections of 16, 25, 35 and 50 mm², with a hole for an M10 screw in the small sizes and M14 in the 35 and 50 mm² ones. They are used to fix the cable to earth clamps, sockets and welder busbars, or to repair a cable without special tools.

Technical Specifications

  • Type: Clamp-type cable lug with 2 bolts
  • Series: TEX-2
  • Materials: Nickel-plated brass, galvanised steel bolts
  • Standard: EN 61238-1
  • Cable cross-section: 16, 25, 35 or 50 mm², among the variants
  • Hole: For M10 screw (16-25) or M14 (35-50)
  • Item No.: F11534
  • Brand: SACIT

Applications and Uses

  • Connecting welding cables without crimping
  • Fixing to earth clamps and busbars
  • Cable repair in the workshop
