TELWIN TECHNOLOGY 186XT MPGE ACX INVERTER WELDER +ACCESSORIES

Code: SD815104 EAN: 8004897165769
€455.60
VAT excluded: €373.44
In stock 1 piece in stock Ships in 24/48 hours

Description

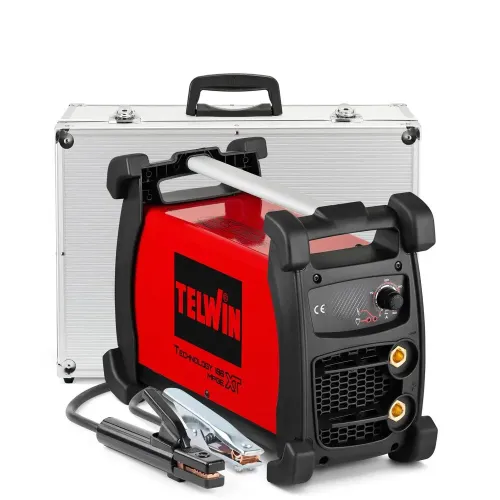

Telwin Technology 186 XT MPGE Inverter Electrode Welder with Case - Item No. 816250


Telwin Technology 186 XT MPGE inverter welder, code 816250, for electrode welding and scratch-start TIG in direct current. It accepts rutile, basic, stainless steel and cast iron electrodes from 1.6 to 4 mm, with arc force, hot start and anti-stick. MPGE protection makes it suited to use with a generator of at least 7 kW. Single-phase 230 V supply, current from 5 to 160 A, 160 A at 35 per cent and 120 A at 60 per cent to EN 60974-1; maximum power 5 kW. 50 mm quick connectors and a metal handle. IP23, 37.5 x 50 x 22 cm, 10.1 kg. Supplied in an aluminium case with Dallas 300 and Toledo 250 holders and 50 mm² cables.

Technical Specifications

  • Type: MMA and scratch-start TIG inverter welder
  • Supply: 230 V single-phase
  • Current: from 5 to 160 A
  • Duty cycle: 160 A at 35, 120 A at 60 per cent (EN 60974-1)
  • Electrodes: from 1.6 to 4 mm
  • Functions: MPGE, arc force, hot start, anti-stick
  • Protection: IP23
  • Weight: 10.1 kg
  • Supplied: Aluminium case, Dallas 300 and Toledo 250 holders, 50 mm² cables
  • Item No.: 816250
  • Brand: TELWIN

Applications and Uses

  • Metalwork and professional maintenance
  • Work with a generator
  • Workshops and building sites
