SUPERIOR 260 CE INVERTER WELDER 380V

Code: SD815503 EAN: 8004897463902
€1,008.30
VAT excluded: €826.56
In stock 1 piece in stock Ships in 24/48 hours

Description

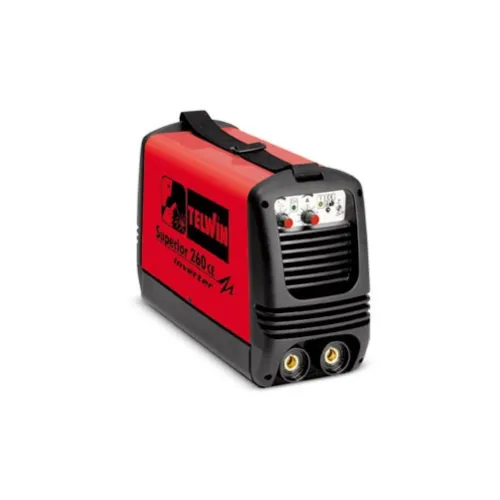

Three-Phase Inverter Welder for Electrode and Lift TIG Telwin Superior 260 CE - Item No. 815503


Telwin Superior 260 CE inverter welder, three-phase 400 V supply, for electrode welding and Lift-start TIG in direct current. It welds rutile, basic, stainless steel and cast iron electrodes and also cellulosic and aluminium ones, from 1.6 to 5 mm; arc force and hot start adapt automatically to the electrode, and there is anti-stick. Current from 5 to 220 A, 220 A at 40 per cent and 180 A at 60 per cent to EN 60974-1. No-load voltage 100 V, 10 A fuse, generator of at least 11 kW; it is prepared for remote control. IP23, class F, 47 x 17 x 28.5 cm, 12.3 kg. It is supplied without accessories: the MMA kit and TIG torch are optional.

Technical Specifications

  • Type: MMA and Lift TIG inverter welder
  • Supply: 400 V three-phase, 10 A fuse
  • Current: from 5 to 220 A
  • Duty cycle: 220 A at 40, 180 A at 60 per cent (EN 60974-1)
  • Electrodes: from 1.6 to 5 mm, including cellulosic
  • Functions: Adaptive arc force and hot start, anti-stick, remote control
  • Protection: IP23, class F
  • Weight: 12.3 kg
  • Item No.: 815503
  • Brand: TELWIN

Applications and Uses

  • Heavy metalwork and building sites
  • Welding with cellulosic electrodes and large diameters
  • Workshops with a three-phase supply

More details

Brand
TELWIN
Code
SD815503
EAN13
8004897463902
Manufacturer code
8155503
