MALE-FEMALE ANTI-VIBRATION MOUNT 20-100mm M6-M16

Male-Female Cylindrical Anti-Vibration Mounts - Ormant

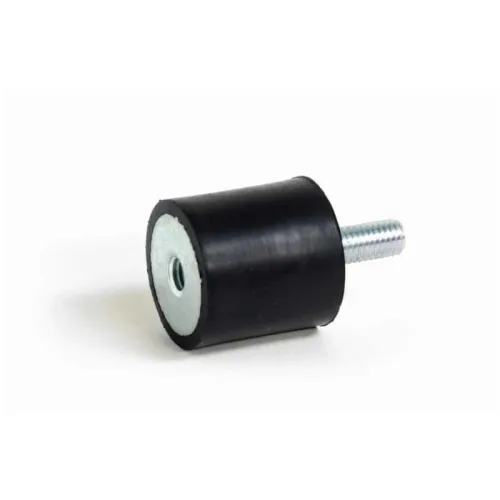

Cylindrical anti-vibration mounts with male-female (M/F) connection, Ormant brand. Configuration with a male threaded stud on one side and an internally threaded (female) bush on the other. It is the most versatile type: the male stud screws into the threaded hole of the machine, while the female side receives a fixing screw from the supporting structure (or vice versa). The widest range, with 17 variants.

Technical specifications

• Type: male-female (M/F) cylindrical anti-vibration mount
• Material: vulcanised rubber with metal inserts
• Available sizes: from 20x25 to 100x50 mm (diameter x height)
• Threads: M6, M8, M10, M12, M16
• 17 variants for maximum flexibility of choice
• Brand: Ormant

Applications and uses

• Universal mounting of machinery and motors
• Vibration isolation of compressors and pumps
• Suspension of mechanical units and electrical panels
• Applications where one side requires a stud and the other a fixing screw
