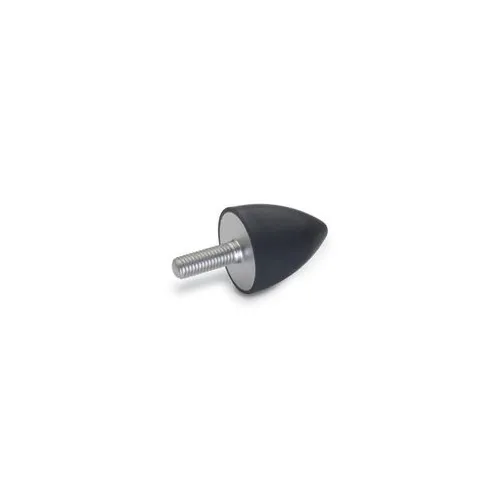

ANTI-VIBRATION MOUNT KPP CONICAL 50mm M8-M10

KPP Type Conical Anti-Vibration Mounts - Ormant

KPP type conical profile anti-vibration mounts, Ormant brand, with a cone-shaped vulcanised rubber body and male threaded insert. The conical profile gives a progressive damping characteristic: stiffness increases in proportion to the applied load, offering soft behaviour under light loads and a stiffer response under high loads. Ideal for applications with variable loads.

Technical specifications

• Type: KPP conical anti-vibration mount
• Material: vulcanised rubber with male threaded insert
• Available sizes: 50x40 mm (M10x27) and 50x67 mm (M8x23)
• Conical profile for progressive damping
• Non-linear response: soft under light loads, stiff under high loads
• Brand: Ormant

Applications and uses

• Machinery with variable or impulsive loads
• Compressors and piston pumps
• Equipment subject to irregular vibrations
• Applications requiring progressive damping
