FEMALE-FEMALE ANTI-VIBRATION MOUNT 20-100mm M6-M16

FEMALE-FEMALE ANTI-VIBRATION MOUNT 20-100mm M6-M16

ORMANT
€21.10
VAT included Delivery in 24/48 hours
Size : 100X50 THREAD M16
Quantity
local_shipping AVAILABLE

11 items
Cylindrical female-female rubber and metal anti-vibration mounts by Ormant, threads from M6 to M16. Connection between two elements by means of through bolts.

Guarantee safe & secure checkout

Female-Female Cylindrical Anti-Vibration Mounts - Ormant

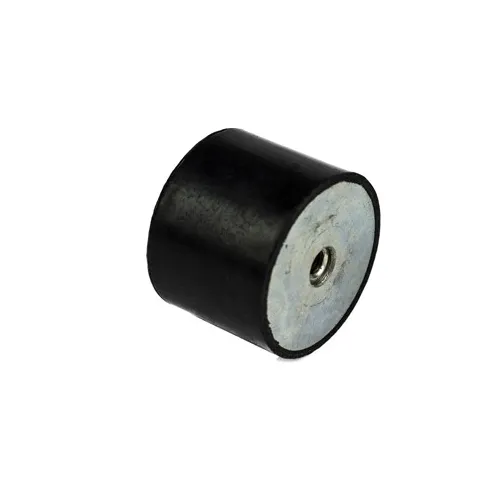

Cylindrical anti-vibration mounts with female-female connection (double internally threaded bush), Ormant brand. The vulcanised rubber body is bonded to two metal bushes with internal threads on both sides, allowing fixing by means of through screws or bolts. The female-female configuration is ideal when both parts to be connected have studs or fixing screws.

Technical specifications

  • Type: female-female (F/F) cylindrical anti-vibration mount
  • Material: vulcanised rubber with internal metal bushes
  • Available sizes: from 20x25 to 100x60 mm (diameter x height)
  • Threads: M6, M8, M10, M12, M16
  • 14 variants to cover every load requirement
  • Brand: Ormant

Applications and uses

  • Anti-vibration connection between machinery and frame
  • Suspension of motors and mechanical units
  • Vibration isolation in metal structures
  • Applications where both sides require screw fixing
Note: Sizes are given as diameter x height of the rubber body. For the same diameter, a greater height offers greater flexibility and damping, while a smaller height ensures greater stiffness and stability.
ORMANT
AVFF10050
11 items

Specific References

MPN
1010
