STM motor flange for U 90 gearbox, PAM 100 B5 configuration, item no. 2450014271. It matches the IEC 100 motor to the gearbox: catalogue motor shaft 28 mm and flange 250 mm.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

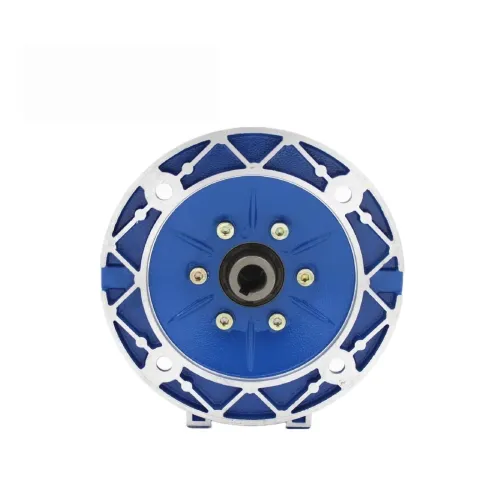

Motor Flange for STM U 90 Gearbox PAM 100 B5 - Item No. 2450014271
STM motor flange for the U 90 worm gearbox, in the PAM 100 configuration with B5 fitting. It is the part that connects the motor to the gearbox: for this size the STM catalogue gives, with the IEC 100 motor, the combination of 28 mm motor shaft and 250 mm flange (B5). The standard configuration of the connection flange has four holes at 45 degrees to the axes. Item No. 2450014271.
Technical Specifications
- Type: Motor flange
- Gearbox: STM U series, size 90
- Motor interface: PAM 100
- Fixing form: B5
- Catalogue motor shaft: 28 mm
- Catalogue motor flange: 250 mm
- Item No.: 2450014271
- Brand: STM
Applications and Uses
- Fitting an IEC 100 motor to the STM U 90 gearbox
- Replacement of a damaged or out-of-tolerance flange
- Spare parts for maintenance of worm gearmotors
More details
- Brand
- STM
- Code
- MEU90PAM100B5
- Manufacturer code
- 2450014271
Recommended accessories and spare parts
STM long output flange for U 90 gearbox, item no. 1010050941: used for flange mounting on the slow shaft side; standard hollow output 35 mm for the size.
STM short output flange for U 90 gearbox, item no. 1010050931: used for flange mounting on the slow shaft side; standard hollow output 35 mm for the size.
STM half coupling for U 75-90 worm gearbox, 24 mm bore, item no. 2450901431. A spare part for the motor-gearbox coupling; construction type to be confirmed before ordering.
