CAMOZZI MX3-1-R004 REGULATOR

Code: CLMX31R004
€91.90
VAT excluded: €75.33
Size : 1"
In stock 1 piece in stock Ships in 24/48 hours

Description

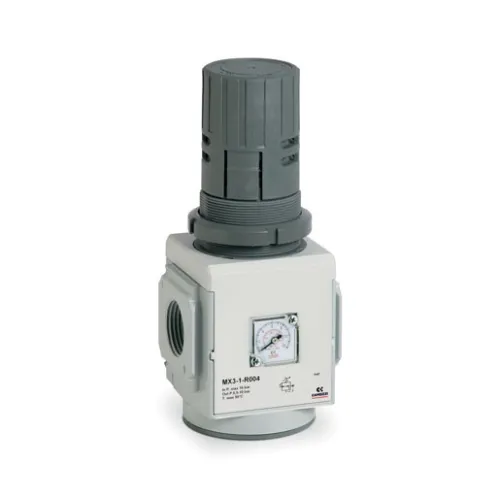

Camozzi Series MX3 G1 Pressure Regulator with Gauge - Item No. MX3-1-R004


Camozzi MX3-1-R004 pressure regulator of the Series MX, size 3, with G1 ports, for high-flow lines and machines. It reduces the mains pressure and keeps it constant at the set value, from 0.5 to 10 bar, with inlet pressure up to 16 bar. The integral exhaust allows the regulated pressure to be lowered by discharging the excess, and the knob can be locked against tampering. The built-in gauge, from 0 to 12 bar, shows the outlet pressure with no additional components. Aluminium body, polyacetal cover, NBR diaphragm and seals. Vertical in-line, wall or panel mounting. Weight 1 kg.

Technical Specifications

  • Type: Diaphragm pressure regulator
  • Series: MX size 3
  • Ports: G1
  • Adjustment range: 0.5 to 10 bar, with relieving
  • Inlet pressure: 0 to 16 bar
  • Gauge: Built-in, 0-12 bar
  • Materials: Aluminium body, polyacetal cover, NBR
  • Weight: 1 kg
  • Item No.: MX3-1-R004
  • Brand: CAMOZZI

Applications and Uses

  • Reducing pressure on high-flow lines
  • Series MX air treatment units
  • Supplying machines at controlled pressure

More details

Brand
CAMOZZI
Code
CLMX31R004
Manufacturer code
MX3-1-R004

Attachments

Recommended accessories and spare parts

KIT FOR MC FILTER 1/4"

€1.40
AVAILABLE
Availability: 7 In stock

Camozzi MC1-VM kit E for assembling Series MC size 1 (G1/4) air treatment units: two M4 galvanised steel screws and an NBR O-ring to join a filter or lubricator to the regulator.

MOUNTING KIT FOR MC TYPE REGULATOR

€1.80
AVAILABLE
Availability: 16 In stock

Camozzi MC2-VM kit E for assembling Series MC size 2 (G3/8 and G1/2) air treatment units: two M5 galvanised steel screws and an NBR O-ring to join a filter or lubricator to the regulator.
