CAMOZZI MC104-R00 REGULATOR

Code: CLMC104R00
€23.40
VAT excluded: €19.18
Size : 1/4"
In stock 8 pieces in stock Ships in 24/48 hours

Description

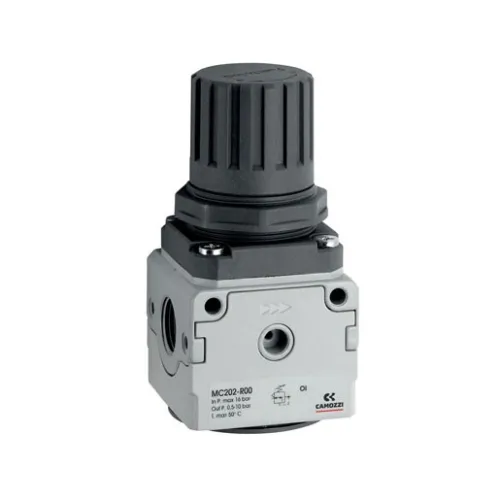

Camozzi Series MC Pressure Regulator - Item No. MC104-R00 / MC202-R00


Camozzi pressure regulator of the Series MC, a modular component of air treatment units: it reduces the mains pressure and keeps it constant at the value required by the users, even when the inlet varies. Diaphragm construction with integral exhaust, which allows the regulated pressure to be lowered by discharging the excess; the knob can be locked against tampering. Inlet pressure from 0 to 16 bar, adjustment from 0.5 to 10 bar, temperature from -5 to 50 °C. Painted zamak, brass, NBR and engineering polymer body. It is mounted in line, on a wall or on a panel, in any position. Gauge not included. Variants MC104-R00 G1/4 and MC202-R00 G1/2.

Technical Specifications

  • Type: Diaphragm pressure regulator
  • Series: MC modular
  • Ports: G1/4 (MC104-R00) or G1/2 (MC202-R00), among the variants
  • Inlet pressure: 0 to 16 bar
  • Adjustment range: 0.5 to 10 bar, with relieving
  • Gauge: Not included
  • Mounting: In line, on a wall or on a panel
  • Materials: Zamak, brass, NBR, engineering polymer
  • Item No.: MC104-R00 / MC202-R00
  • Brand: CAMOZZI

Applications and Uses

  • Reducing pressure for machines and tools
  • Series MC filter-regulator-lubricator units
  • Compressed air systems and lines in workshops and industry

More details

Brand
CAMOZZI
Code
CLMC104R00
Manufacturer code
MC104-R00

Attachments

Recommended accessories and spare parts

KIT FOR MC FILTER 1/4"

€1.40
AVAILABLE
Availability: 7 In stock

Camozzi MC1-VM kit E for assembling Series MC size 1 (G1/4) air treatment units: two M4 galvanised steel screws and an NBR O-ring to join a filter or lubricator to the regulator.

MOUNTING KIT FOR MC TYPE REGULATOR

€1.80
AVAILABLE
Availability: 16 In stock

Camozzi MC2-VM kit E for assembling Series MC size 2 (G3/8 and G1/2) air treatment units: two M5 galvanised steel screws and an NBR O-ring to join a filter or lubricator to the regulator.
