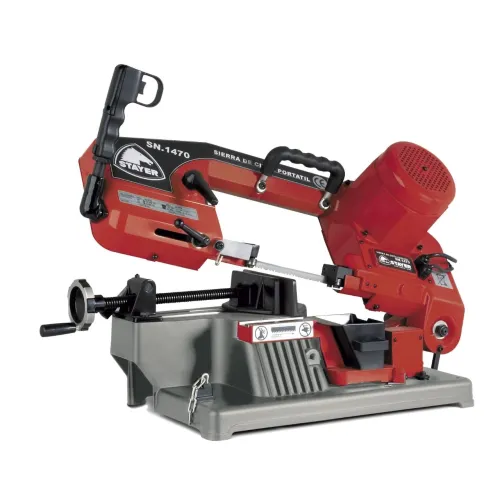

STAYER SN1470 BANDSAW

Code: UESSN1470
€653.40
VAT excluded: €535.57
In stock 1 piece in stock Ships in 24/48 hours

Description

Metal-Cutting Band Saw Stayer SN 1470 - Item No. 1.5526


Stayer SN 1470 band saw, item no. 1.5526, for cutting round, square and rectangular metal sections. The single-phase motor is of the magnetic type, quiet, rated at 1/2 HP, and a regulator allows the speed to be varied. It comes fitted with a bimetal blade, held in position by the adjustable blade guide and tensioned with the dedicated handwheel. The cast aluminium arm tilts from 0 to 60 degrees for angled cuts, the quick-clamp vice holds the workpiece and the stop allows cuts of the same length to be repeated without measuring each time. The weight is 22 kg.

Technical Specifications

  • Type: Metal-cutting band saw
  • Motor: single-phase, 1/2 HP, with speed regulator
  • Standard blade: bimetal 1470 x 13 x 0.65 mm
  • Cut at 90°: round Ø 100, square 100 x 100, rectangle 100 x 150 mm
  • Cut at 45°: round Ø 75, square 63 x 63, rectangle 63 x 100 mm
  • Arm tilt: 0° to 60°
  • Vice: quick, maximum opening 125 mm
  • Weight: 22 kg
  • Item No.: 1.5526
  • Brand: STAYER

Applications and Uses

  • Cutting steel pipes and sections
  • Angled cuts for frames and welded structures
  • Repeat cuts using the stop
  • Metal fabrication work in the workshop

More details

Brand
STAYER
Code
UESSN1470
Manufacturer code
SN 1470
