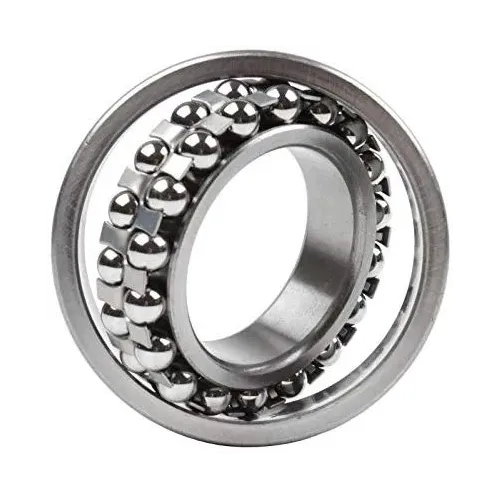

Multiple variants (2300, 2305, 2310, 2320, etc.). Self-aligning double-row ball bearings with spherical raceway, high load capacity for the same overall size, compensating for misalignment of up to 2-3 degrees. Industrial applications with medium-to-high loads and expected misalignment. Photos are for illustration purposes only.
Guarantee safe & secure checkout
Type: Self-aligning double-row ball bearings. Two rows of balls seated in cylindrical raceways of the inner ring, with a spherical swivelling raceway on the outer ring that allows self-alignment.
Construction: With the same outside diameter and bore as single-row bearings (22XX series), they are slightly wider but offer significantly higher load capacity. Two cages in glass-fibre-reinforced PA66 polyamide keep the balls aligned and reduce inertia.
Self-alignment: The spherical raceway of the outer ring allows automatic compensation of angular misalignment of up to 2-3 degrees, eliminating stress on the shaft and housing.
Protection: Open bearings without seals (standard design). The absence of seals makes cleaning and greasing easier, but requires greater protection from external contaminants.
Radial clearance: Available in class CN (normal), C2 (reduced), C3, C4, C5 (increased) depending on the application and temperature.
Lubrication: Require periodic lubrication with grease. Maintenance is needed to renew the grease because of the absence of seals.
Specifications: High radial load capacity for the same size compared with single row, low friction, temperatures from -30°C to +80°C, effective compensation of misalignment, stability at high speed.
Applications: Electric motors, transmissions, gearboxes, fans, pumps, agricultural machinery, installations where misalignment is unavoidable, systems with medium-to-high loads and where greater stability is required.
Benefits: Higher load capacity than single row with the same external size, self-alignment of up to 2-3°, compact design, low friction even at high speed, wide availability of radial clearance variants.
Specific References
Multiple variants. Spherical roller bearings with high load capacity for large-diameter applications, double row of symmetrical rollers, spherical outer ring, available with cylindrical or tapered bore. Photos are for illustration purposes only.
Multiple variants (22206, 22207, 22208, 22209, etc.). Economy double-row spherical roller bearings, commercial quality, self-aligning, low cost. Photos are for illustration purposes only.
Multiple variants (23126, 23128, 23130, etc.). Double-row spherical roller bearings, extremely high load capacity on large diameters, available with various seals and radial clearances. Photos are for illustration purposes only.
Parent product with multiple variants (213, 213XX with numerical variants). Spherical roller bearings with two rows of rollers, spherical outer ring, high load capacity and self-alignment of up to 2°. Relubricable, suitable for environments with heavy loads and misalignment. The photos are for illustrative purposes only.
Multiple variants (22026, 23028, 23030, 23032, etc.). Spherical roller bearings with high load capacities for large-diameter applications, double row of symmetrical rollers, spherical outer ring, available with cylindrical or tapered bore. The photos are for illustrative purposes only.
Multiple variants (23026, 23028, 23030, 23032, etc.). Spherical roller bearings with symmetrical double row, spherical outer ring, very high load capacity, relubricatable. Compensate for misalignment of up to 2-3°. Photos are for illustration purposes only.
Multiple variants (23226, 23228, 23230, etc.). Double-row spherical roller bearings, the highest load capacity of the spherical series, cylindrical bore, available with various seals. Photos are for illustration purposes only.
Multiple variants (22206, 22207, 22208, 22210, 22212, etc.). Spherical roller bearings with double row of symmetrical rollers, spherical outer ring, very high load capacity. Available with cylindrical or tapered bore, various seals and radial clearances. Photos are for illustration purposes only.
Spherical roller bearings series 202XX, ideal for industrial applications with heavy loads and situations where misalignment between shaft and housing must be compensated.
These bearings may be from brands such as FAG, SKF, or TIMKEN. All leading brands in the bearing industry
Multiple variants (21300, 21301, 21302, 21303, etc.). Economy double-row spherical roller bearings, commercial quality, self-aligning, low cost. Photos are for illustration purposes only.
Multiple variants (2200, 2201, 2202, 2203, etc.). Economy self-aligning double-row ball bearings, commercial quality, low cost, non-critical applications. Photos are for illustration purposes only.
Spherical roller bearing series 203XX, ideal for applications with high radial loads and where misalignment compensation between shaft and housing is required.
These bearings may be from brands such as FAG, SKF, or TIMKEN. All leading brands in the bearing industry
Multiple variants (22307, 22308, 22309, 22310, etc.). Economy double-row spherical bearings, high load capacity, commercial quality, low cost. Photos are for illustration purposes only.
