Multiple variants (22026, 23028, 23030, 23032, etc.). Spherical roller bearings with high load capacities for large-diameter applications, double row of symmetrical rollers, spherical outer ring, available with cylindrical or tapered bore. The photos are for illustrative purposes only.
Guarantee safe & secure checkout

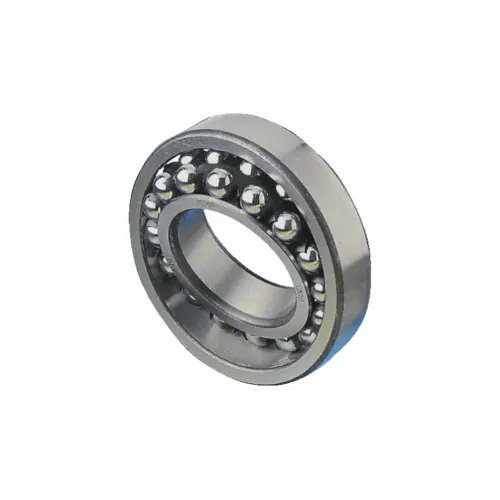

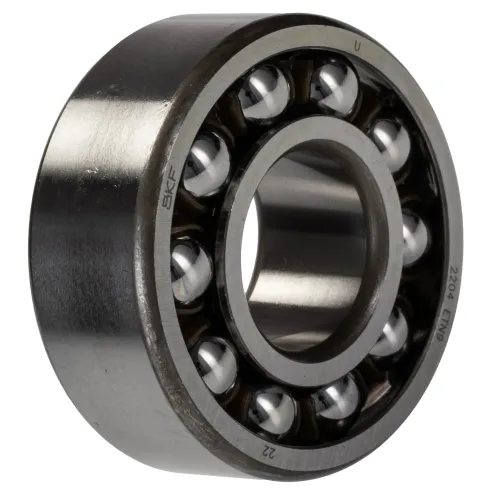

Type: Self-aligning deep groove ball bearings with double row of balls. Two rows of balls housed in cylindrical raceways of the inner ring, outer ring with oscillating spherical raceway.
Self-alignment: Thanks to the spherical raceway of the outer ring, they compensate for angular shaft misalignment of up to 2-3 degrees without generating stress on the bearing.
Construction features: For the same outer diameter and bore as single-row bearings, they are slightly wider but offer considerably higher load capacity. Two reinforced polyamide cages (PA66 with glass fibre) keep the balls aligned.
Protection: Available open (without seals), with 2RS contact seals, or with 2Z protective shields. Sealed versions protect against contaminants and moisture.
Radial clearance: Available in class C2 (reduced), CN (normal standard), C3, C4, C5 (increased), selectable according to the application.
Lubrication: Require periodic lubrication with grease, except for variants with ceramic seals, which have special protection.
Specifications: High radial load capacity, low friction speed, temperatures -30°C to +80°C, preloaded versions for rigid applications.
Applications: Electric motors, transmissions, gearboxes, agricultural machinery, fans, pumps, plants where misalignment is unavoidable, systems with medium-to-high loads.
Benefits: Double the load of a single row, self-alignment, low friction even at high speed, compact design, wide availability of variants.
Specific References
Multiple variants (23026, 23028, 23030, 23032, etc.). Spherical roller bearings with symmetrical double row, spherical outer ring, very high load capacity, relubricatable. Compensate for misalignment of up to 2-3°. Photos are for illustration purposes only.
Spherical roller bearing series 203XX, ideal for applications with high radial loads and where misalignment compensation between shaft and housing is required.
These bearings may be from brands such as FAG, SKF, or TIMKEN. All leading brands in the bearing industry
Multiple variants (23226, 23228, 23230, etc.). Double-row spherical roller bearings, the highest load capacity of the spherical series, cylindrical bore, available with various seals. Photos are for illustration purposes only.
Multiple variants. Spherical roller bearings with high load capacity for large-diameter applications, double row of symmetrical rollers, spherical outer ring, available with cylindrical or tapered bore. Photos are for illustration purposes only.
Multiple variants (22307, 22308, 22309, 22310, etc.). Economy double-row spherical bearings, high load capacity, commercial quality, low cost. Photos are for illustration purposes only.
Multiple variants (23126, 23128, 23130, etc.). Double-row spherical roller bearings, extremely high load capacity on large diameters, available with various seals and radial clearances. Photos are for illustration purposes only.
Multiple variants (22206, 22207, 22208, 22209, etc.). Economy double-row spherical roller bearings, commercial quality, self-aligning, low cost. Photos are for illustration purposes only.
Multiple variants (22206, 22207, 22208, 22210, 22212, etc.). Spherical roller bearings with double row of symmetrical rollers, spherical outer ring, very high load capacity. Available with cylindrical or tapered bore, various seals and radial clearances. Photos are for illustration purposes only.
Parent product with multiple variants (213, 213XX with numerical variants). Spherical roller bearings with two rows of rollers, spherical outer ring, high load capacity and self-alignment of up to 2°. Relubricable, suitable for environments with heavy loads and misalignment. The photos are for illustrative purposes only.
Multiple variants (2300, 2305, 2310, 2320, etc.). Self-aligning double-row ball bearings with spherical raceway, high load capacity for the same overall size, compensating for misalignment of up to 2-3 degrees. Industrial applications with medium-to-high loads and expected misalignment. Photos are for illustration purposes only.
Multiple variants (2200, 2201, 2202, 2203, etc.). Economy self-aligning double-row ball bearings, commercial quality, low cost, non-critical applications. Photos are for illustration purposes only.
Multiple variants (21300, 21301, 21302, 21303, etc.). Economy double-row spherical roller bearings, commercial quality, self-aligning, low cost. Photos are for illustration purposes only.
Spherical roller bearings series 202XX, ideal for industrial applications with heavy loads and situations where misalignment between shaft and housing must be compensated.
These bearings may be from brands such as FAG, SKF, or TIMKEN. All leading brands in the bearing industry
