BRONZE HOLLOW ROUND BAR D.30-200 x BORE 15-150mm CuSn7Zn4Pb7

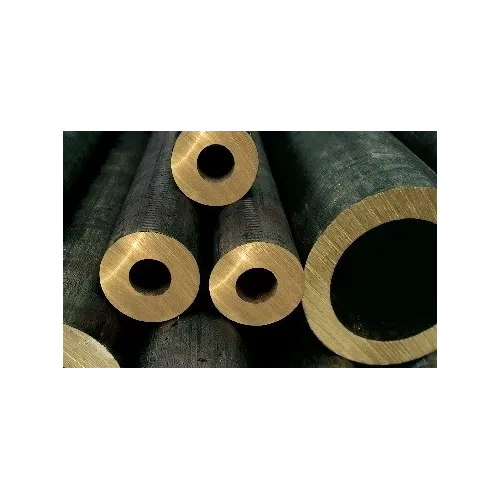

Hollow Bronze Ingots (Bushes) - CuSn7Zn4Pb7 Alloy

Hollow bronze ingots (rough tubes/bushes) produced by centrifugal casting in CuSn7Zn4Pb7 alloy (Rg7, equivalent to EN 1982 CC493K). The hollow format is already provided with an inner bore, drastically reducing machining waste compared with solid bar and speeding up the production of bushes and bearings. Centrifugal casting is the ideal process for hollow bars: the centrifugal force pushes impurities and inclusions towards the inside of the bore (which is then turned), leaving pure, compact material in the usable wall thickness of the bush.

Technical specifications

• Alloy: CuSn7Zn4Pb7 (Rg7 / CC493K)
• Composition: Copper ~83%, Tin 7%, Zinc 4%, Lead 7%
• Process: centrifugal casting (impurities concentrated in the bore, pure usable wall thickness)
• Type: hollow round bar (rough bush)
• Outside diameters: from 30 to 200 mm
• Inside bores: from 15 to 150 mm
• 59 outside diameter / bore combinations available
• Self-lubricating properties (lead in the alloy)

Applications and uses

• Bushes and plain bearings (ready-to-turn format)
• Sleeves and sliding guides
• Seats for rotating shafts and pins
• Anti-friction components for industrial machinery
• Repair and replacement of bushes on existing machinery
