CAMOZZI 5850 AIR FITTING QUICK-COUPLING MIGNON CONNECTION

Code: CL585064
€1.40
VAT excluded: €1.15
Size : D. 6
In stock 27 pieces in stock Ships in 24/48 hours

Description

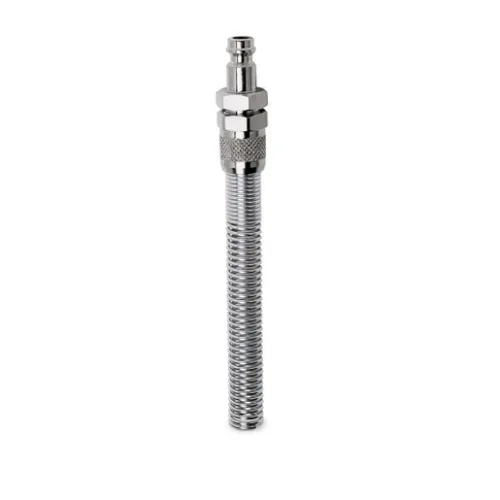

Spring Quick Coupling for Hose Camozzi Mini Profile - Item No. 5850


Camozzi Mod. 5850 spring coupling, from the Series 5000 of quick-connect couplings, Mini profile with a nominal diameter of 5 mm, compatible with Rectus Series 21-90 and Legris 21, the profile known as Mignon. It is the plug to be fitted to the end of a plastic hose, in the spring version. It is inserted into the quick couplers of the system and is disconnected without releasing the pressure. Nickel-plated brass body, NBR seals, working pressure from -0.99 to 12 bar with a nominal 6 bar, temperature from 0 to 80 °C. The catalogue lists sizes for 6/4 and 8/6 mm hose.

Technical Specifications

  • Type: Spring quick coupling for hose
  • Profile: Mini (Mignon), nominal diameter 5 mm
  • Compatibility: Rectus Series 21-90, Legris 21
  • Hose: size selectable among the variants
  • Materials: Nickel-plated brass, NBR seals
  • Working pressure: from -0.99 to 12 bar (nominal 6 bar)
  • Working temperature: from 0 to 80 °C (from -20 °C with dry air)
  • Item No.: 5850
  • Brand: CAMOZZI

Applications and Uses

  • Whip hoses for guns and pneumatic tools
  • Extension connections to Mignon couplers
  • Workshops and workstations

More details

Brand
CAMOZZI
Code
CL585064
Manufacturer code
5850 6/4
