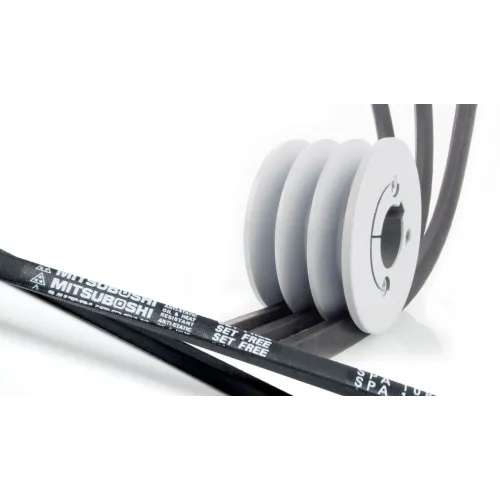

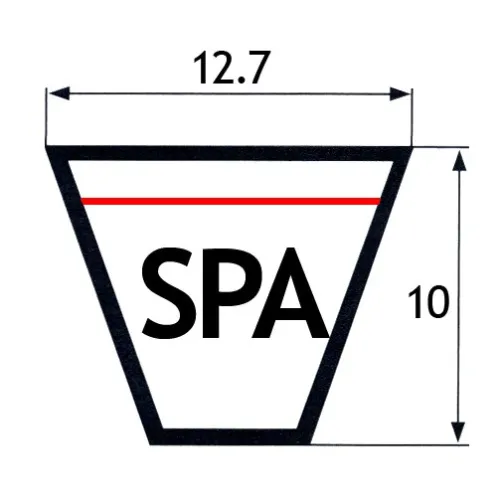

V-BELT SECTION "SPA"

The 3V section V-belt is a high-performance drive belt, designed to transmit power in industrial machinery and vehicles. Thanks to its trapezoidal profile, it offers high load capacity and optimum grip, ensuring efficient and long-lasting transmission.

The toothed belt L 100 is a precision mechanical belt, ideal for reliable synchronous drives. The designation “L 100” indicates the belt section, with back width of 1 inch (25.4 mm) and tooth pitch of 0,375 inch (9,525 mm). Several variants are available, identified by the belt length expressed in millimetres, to suit any application.

The toothed belt L 075 is a precision mechanical belt, ideal for reliable synchronous drives. The designation “L 075” indicates the belt section, with back width of 0,75 inch (19.05 mm) and tooth pitch of 0,375 inch (9,525 mm). Several variants are available, identified by the belt length expressed in millimetres, to suit any application.

The perforated V-belt is a standard section V‑belt intended for customisable industrial and mechanical applications. Thanks to the regular holes along the back and the dedicated joints, the belt can be made to any length and is sold by the metre, so that it fits any plant or transmission system perfectly.

H 100 – Precision toothed belt with back width of 1 inch (25.4 mm) and tooth pitch of 0,5 inch (12.7 mm). Available in various lengths expressed in millimetres, ideal for reliable synchronous drives.

The Eagle Red 105 toothed belt is a high-performance synchronous drive belt, designed for industrial applications and mechanical systems requiring precision, quiet running and reliability. The number 105 indicates the belt width in millimetres (105 mm), one of the standard sizes of the Silent Sync® / Eagle series. The belt is available in several variants with lengths expressed in millimetres, to suit the power transmission and synchronised motion requirements of your plant and machinery.

The section “C” V-belts — with designations ranging from C100 to C300 — are classic power transmission belts with a V profile used to transfer power in mechanical and industrial applications. The “C” section indicates a trapezoidal profile with a top width of approximately 22 mm and a height of approximately 14 mm (standard C‑section), compliant with international standards for V‑belts, for reliable transmission between compatible pulleys. The C100…C300 variants refer to increasing pitch lengths, identified by standard codes (linked to the length in inches converted into millimetres).

The section “A” V-belts – with sizes from A61 to A98 – are classic V‑belt drive belts used to transfer power between shafts by means of pulleys with a compatible groove profile. Section A indicates a trapezoidal profile with standard dimensions of approximately 13 mm top width and 8 mm height, compliant with ISO/DIN standards for V‑belts. The variants A61…A98 refer to the different pitch lengths of the belt, expressed in standard codes, and are available in various lengths in millimetres for many mechanical and industrial applications.

H 075 – Precision toothed belt with a back width of 0,75 inches (19.05 mm) and tooth pitch of 0,5 inches (12.7 mm). Available in various lengths expressed in millimetres, suitable for reliable synchronised drives.

The section “SPZ” V-belt is an industrial V-belt belonging to the SIT SP series, designed for light and medium-light power transmissions. Compared with traditional section Z belts, the SPZ guarantees greater operating stability, better efficiency and longer service life, thanks to a more advanced construction.

H 200 – Precision toothed belt with back width of 2 inches (50.8 mm) and tooth pitch of 0,5 inch (12.7 mm). Available in various lengths expressed in millimetres, for reliable synchronous drives.

The section “B” V-belts — with codes ranging from B24 to B60 — are trapezoidal-profile drive belts (V‑belts) widely used to transfer power between shafts by means of pulleys with a compatible groove. The section “B” indicates a standard profile with a back width of approximately 17 mm and a height of approximately 11 mm, compliant with ISO/DIN standards for V‑belts. The variants B24…B60 cover various pitch lengths, expressed by international standard codes and available in many lengths in millimetres.

The SIT VARIO variator belts are special V-belts designed for variable speed transmissions using adjustable-diameter pulleys. These belts are designed to transmit high power in systems with continuous speed adjustment, maintaining high performance and service life even in severe conditions.

The 5V section V-belt is a high-performance drive belt, designed to transmit high power in industrial machinery and mechanical plants. Thanks to its wider trapezoidal profile, it offers greater load capacity and superior grip, ensuring efficient and long-lasting transmission.

The section “A” V-belts – with designations ranging from A15 to A60 – are classic V‑belt drive belts used to transfer power between shafts by means of grooved pulleys. The “A” profile indicates a standard trapezoidal section with a back width of approximately 13 mm and a height of approximately 8 mm, compliant with ISO/DIN standards for V‑belts. The variants from A15 to A60 refer to the different pitch lengths of the belt, expressed in standard numbers, and are available in many lengths to suit various mechanical and industrial applications.

The section “B” V-belts — with designations ranging from B61 to B99 — are classic V‑belt power transmission belts designed to transfer power between shafts using pulleys with compatible grooves. Section B indicates a standard trapezoidal profile with a top width of approximately 17 mm and a height of approximately 11 mm, compliant with international V‑belt standards. The B61…B99 variants correspond to different belt pitch lengths, which are identified by standard codes (linked to the length in inches converted into millimetres).
