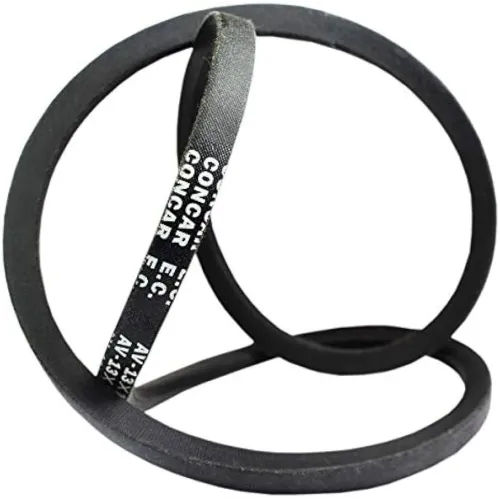

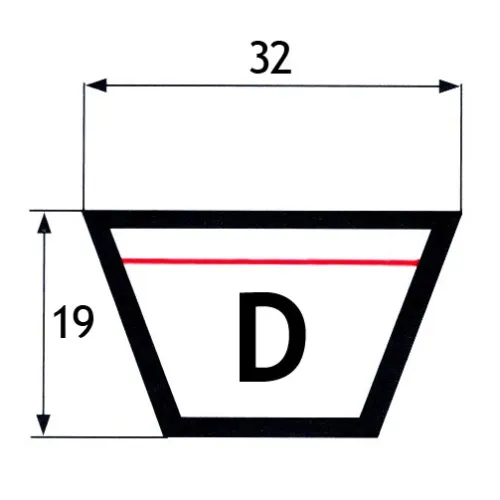

V-BELT SECTION "D" FROM 110 TO 285

The section “C” V-belts — in sizes from C43 to C99 — are standard “V” profile mechanical power transmission belts, designed to transfer power between grooved pulleys in various types of industrial machinery and mechanical applications. The “C” section indicates a trapezoidal profile with standard dimensions of approximately 22 mm top width and 14 mm height according to technical standards for V‑belts. These belts in the C43…C99 range cover a series of increasing pitch lengths, expressed in international standard numbers and useful for easily identifying the correct size.

The 3V section V-belt is a high-performance drive belt, designed to transmit power in industrial machinery and vehicles. Thanks to its trapezoidal profile, it offers high load capacity and optimum grip, ensuring efficient and long-lasting transmission.

The section “B” V-belts — with designations ranging from B61 to B99 — are classic V‑belt power transmission belts designed to transfer power between shafts using pulleys with compatible grooves. Section B indicates a standard trapezoidal profile with a top width of approximately 17 mm and a height of approximately 11 mm, compliant with international V‑belt standards. The B61…B99 variants correspond to different belt pitch lengths, which are identified by standard codes (linked to the length in inches converted into millimetres).

The Eagle Blue 35 toothed belt is a high-precision mechanical drive belt designed for industrial applications with synchronous drives. The designation “35” identifies the belt width in millimetres (35 mm) and is part of the high-performance SilentSync / Eagle belt family, characterised by low noise, high precision and excellent dynamic behaviour. Several variants with length expressed in millimetres are available, to suit various applications and mechanical systems.

The Eagle Green 52,5 toothed belt is a high-performance synchronous drive belt, part of the Silent Sync® / Eagle range designed for industrial applications and machines requiring high movement precision. The value 52,5 indicates the belt width in millimetres. This belt is available in several variants with lengths expressed in millimetres, to suit the power transmission and synchronisation requirements of mechanical systems.

The section “C” V-belts — with designations ranging from C100 to C300 — are classic power transmission belts with a V profile used to transfer power in mechanical and industrial applications. The “C” section indicates a trapezoidal profile with a top width of approximately 22 mm and a height of approximately 14 mm (standard C‑section), compliant with international standards for V‑belts, for reliable transmission between compatible pulleys. The C100…C300 variants refer to increasing pitch lengths, identified by standard codes (linked to the length in inches converted into millimetres).

The SIT section “SPA” V-belt is an industrial V-belt designed to provide greater reliability, stability and service life than traditional section A belts, while maintaining a similar top width. It is used in mechanical applications where consistent performance and greater durability over time are required.

H 150 – Precision toothed belt with back width of 1,5 inches (38.1 mm) and tooth pitch of 0,5 inch (12.7 mm). Available in various lengths expressed in millimetres, ideal for synchronous drives.

The section “Z” V-belt is a trapezoidal profile power transmission belt used in light mechanical and industrial applications. Section Z identifies a compact belt, suitable for small-diameter pulleys and for systems where reduced size and good transmission efficiency are required. Various pitch lengths (lengths) are available to suit a wide range of applications.

The section “B” V-belts — with codes ranging from B24 to B60 — are trapezoidal-profile drive belts (V‑belts) widely used to transfer power between shafts by means of pulleys with a compatible groove. The section “B” indicates a standard profile with a back width of approximately 17 mm and a height of approximately 11 mm, compliant with ISO/DIN standards for V‑belts. The variants B24…B60 cover various pitch lengths, expressed by international standard codes and available in many lengths in millimetres.

The 5V section V-belt is a high-performance drive belt, designed to transmit high power in industrial machinery and mechanical plants. Thanks to its wider trapezoidal profile, it offers greater load capacity and superior grip, ensuring efficient and long-lasting transmission.

The Eagle Red 105 toothed belt is a high-performance synchronous drive belt, designed for industrial applications and mechanical systems requiring precision, quiet running and reliability. The number 105 indicates the belt width in millimetres (105 mm), one of the standard sizes of the Silent Sync® / Eagle series. The belt is available in several variants with lengths expressed in millimetres, to suit the power transmission and synchronised motion requirements of your plant and machinery.

The toothed belt L 050 is a precision mechanical belt, ideal for reliable synchronous drives. The designation “XL 050” indicates the belt section, with a back width of 0,3125 inch (7.94 mm) and a tooth pitch of 0,375 inch (9,525 mm). Several variants are available, identified by the belt length expressed in millimetres, to suit any application.

The toothed belt XL 037 is a precision mechanical belt for reliable synchronous drives. The designation “XL 037” indicates the belt section, with back width of 0,25 inch (6.35 mm) and tooth pitch of 0,2 inch (5.08 mm). Several variants are available, identified by the belt length expressed in millimetres, to suit any application.

The section “SPB” V-belt is an industrial V-belt belonging to the SIT SP range, designed for medium-to-high power transmission applications. Compared with traditional section B belts, the SPB offers greater stability, higher efficiency and longer service life, thanks to an optimised profile and construction.

The toothed belt XL 050 is a precision mechanical belt, ideal for reliable synchronous drives. The designation “XL 050” indicates the belt section, with back width of 0,3125 inch (7.94 mm) and tooth pitch of 0,2 inch (5.08 mm). Several variants are available, identified by the belt length expressed in millimetres, to suit any application.
