TOOTHED BELT XL 050

Code: CIDXL050160
€4.80
VAT excluded: €3.93
Size : 160-TEETH 80
In stock 2 pieces in stock Ships in 24/48 hours

Description

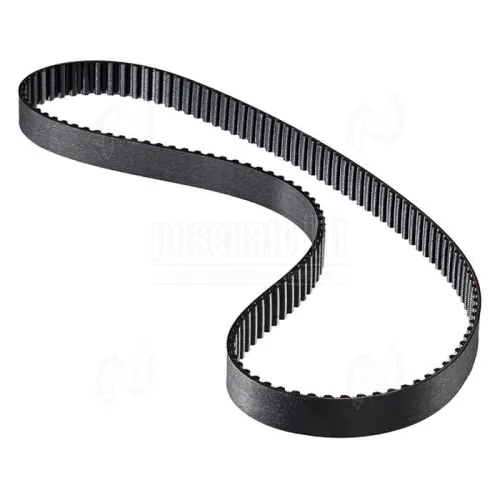

XL 050 Timing Belt


An economical synchronous drive that replaces chain and gears without metal-on-metal contact: this is the SIT Classic range, of which the XL 050 is the version with a pitch of 5.080 mm and a width of 12.7 mm. Minimal stretch and no lubrication.

The code includes the profile (XL) and the width in hundredths of an inch (050). Each variant is identified by the code of the pitch length in inches multiplied by ten and by the number of teeth.

Technical Specifications

  • Profile: XL, pitch 5.080 mm
  • Width: 12.7 mm
  • Total thickness: 2.40 mm
  • Linear mass: 0.056 kg/m for 25.4 mm of width, proportional to the width
  • Maximum speed: up to 30 m/s
  • Oil resistance: good
  • Antistatic: not provided
  • Compound: chloroprene rubber (CR) with glass-fibre cords
  • Item No.: CIDXL05000
  • Brand: SIT

Applications and Uses

  • Machine tools
  • Textile machines
  • Compressors and fans
