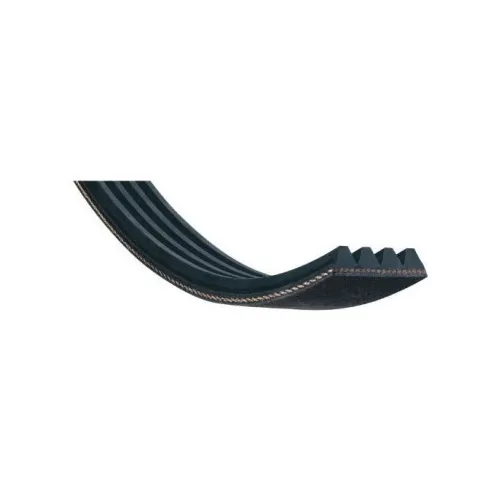

The Poly‑V belt, section J is characterised by parallel longitudinal ribs that provide a large contact surface with the pulleys, increasing grip and reducing slippage even in applications with several pulleys. The “J” configuration is one of the most widespread standard profiles for light and medium industrial applications.
-
Sold by rib: the quantity shown refers to a single rib of the belt. To obtain the complete belt, add the number of ribs required (e.g. 8 ribs).
-
Multiple orders: if you need several complete belts (for example two or three belts with 6 ribs each), state this in the order notes.
-
Pitch (distance between ribs): section J has a pitch of 2.34 mm, i.e. the distance between the top of one rib and the next along the length of the belt.
-
Rib height: approximately 3.5 mm for section J (groove depth).
-
Material: technical rubber with internal reinforcement (usually polyester cords) for wear resistance, dimensional stability and long service life.
-
Available lengths: as it is sold by rib, you can obtain belts of any length simply by specifying the number of ribs required and the overall length needed.
-
Typical applications: industrial automation, machine tools, fans, pumps, compressors and multi-pulley drive systems where efficiency, compactness and flexibility are required.
Sold by rib: the quantity shown refers to a single rib of the belt. To obtain the complete belt, add the number of ribs required (e.g. 8 ribs).
-
Multiple orders: if you need several complete belts (for example two or three belts with 6 ribs each), state this in the order notes.
-
Pitch (distance between ribs): section J has a pitch of 2.34 mm, i.e. the distance between the top of one rib and the next along the length of the belt.
-
Rib height: approximately 3.5 mm for section J (groove depth).
-
Material: technical rubber with internal reinforcement (usually polyester cords) for wear resistance, dimensional stability and long service life.
-
Available lengths: as it is sold by rib, you can obtain belts of any length simply by specifying the number of ribs required and the overall length needed.
-
Typical applications: industrial automation, machine tools, fans, pumps, compressors and multi-pulley drive systems where efficiency, compactness and flexibility are required.
