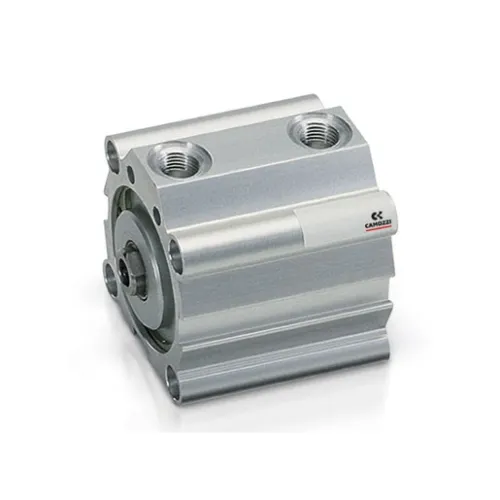

SHORT-STROKE CYLINDER QP32 STROKE 20

Tie-rod construction type

Operation double acting, single acting, tandem

Materials end caps aluminium, seals NBR, rod PU.

For other materials see coding example.

Mounting with tie rods, front flange, rear flange, feet, intermediate hinge, front and rear hinge, swivel hinge

Min - max strokes 10 ÷ 2500 mm

Operating temperature 0°C ÷ 80°C ( with dry air - 20°C )

Special versions see coding examples

Operating pressure 1 ÷ 10 bar

Speed 10 ÷ 1000 mm/sec (without load)

Fluid filtered, non-lubricated air; if lubricated air is used, ISOVG32 oil is recommended and lubrication must never be interrupted

PRE-ASSEMBLED PISTON FOR CAMOZZI SERIES 40 CYLINDERS D.50 OR FOR OTHER BORE 50 CYLINDERS

Compact mini cylinders with non-threaded rod Mod. 14N1M

Operation Double acting

Series name 24

Stroke 250

Construction V ring nut + U rod nut

Material characteristics Rolled stainless steel AISI 303 rod, stainless steel AISI 304 tube, anodised aluminium end caps

Version Standard

Bore 25

Operation Double acting

Series name 16

Stroke 30

Construction V ring nut + U rod nut

Material characteristics Rolled stainless steel AISI 303 rod, stainless steel AISI 304 tube, anodised aluminium end caps

Version Standard

Bore 8

Operation Single acting, Front spring

Series name 24

Stroke 25

Construction V ring nut + U rod nut

Material characteristics Rolled stainless steel AISI 303 rod, stainless steel AISI 304 tube, anodised aluminium end caps

Version Standard

Bore 20

Camozzi mini cylinders, choose bore and stroke. See the dimensional table in the attachments for clarification or contact us
