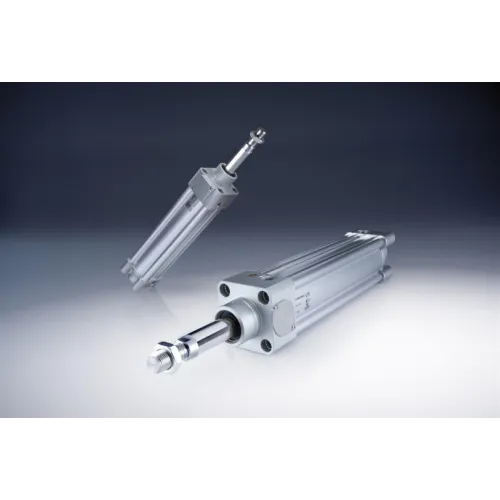

CAMOZZI SQUARE CYLINDER SERIES 63-61-40

Code: CL26N2A100A40
€173.40
VAT excluded: €142.13
Size : BORE 100-STROKE 40
In stock 2 pieces in stock Ships in 24/48 hours

Description

ISO 15552 Pneumatic Cylinders Camozzi Series 63


Camozzi pneumatic cylinders of the Series 63, built to the ISO 15552 standard and therefore interchangeable with other standardised cylinders of the same size. Reference code 63MT2C080A0150 is a round-barrel tie-rod cylinder, double-acting, magnetic and cushioned on both end caps, with 80 mm bore, 150 mm stroke, 25 mm rod with M20x1.5 thread and G3/8 ports. The series has an anodised aluminium barrel, AISI 420B steel rod, aluminium end caps and PU seals. Pressure from 1 to 10 bar, temperature from 0 to 80 °C. It accepts all ISO mounting accessories. Bore and stroke among the variants.

Technical Specifications

  • Type: Double-acting, magnetic, cushioned cylinders
  • Standard: ISO 15552
  • Series: 63
  • Reference: 63MT2C080A0150, round barrel, bore 80, stroke 150
  • Materials: Anodised aluminium barrel, AISI 420B rod, PU seals
  • Operating pressure: 1 to 10 bar
  • Temperature: 0 to 80 °C (from -20 °C with dry air)
  • Bore and stroke: selectable among the variants
  • Brand: CAMOZZI

Applications and Uses

  • Thrust and lifting on industrial machines
  • Replacement of ISO 15552 cylinders
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL26N2A100A40
Manufacturer code
26N2A100A40

Attachments

Recommended accessories and spare parts

CAMOZZI SENSOR CST

€17.00
AVAILABLE
Availability: 5 In stock

Camozzi CST reed magnetic sensor for T-slot, NO contact, yellow LED, IP67, 2 m cable: CST-220 2-wire 10 to 110 V AC/DC and CST-232 3-wire PNP 5 to 30 V. Version among the variants.

CAMOZZI FLOW REGULATOR PMCU

€9.00
AVAILABLE
Availability: 20 In stock

Camozzi PMCU 706-1/4-8 one-way flow regulator for mounting on cylinders: G1/4 port, connection for Ø8 tube, manual knob and swivel fitting. Brass body, from 1 to 10 bar.

CAMOZZI HINGE MOD.C DIA.100

€27.10
Last one left!
Availability: 1 In stock

Camozzi Mod. C rear female hinge for ISO 15552 cylinders of Series 61 and 63: in aluminium, with 4 screws, bores from 32 to 100 mm among the variants; C-H version for 63-100 also usable at the front.

CAMOZZI HINGE MOD L

€26.50
AVAILABLE
Availability: 3 In stock

Camozzi Mod. L rear male hinge for ISO 15552 cylinders of Series 61 and 63: in aluminium, supplied with 4 screws, bores from 32 to 100 mm selectable among the variants.

CAMOZZI FRONT CLEVIS G

€2.30
Only 2 left!
Availability: 2 In stock

Camozzi Mod. G rod clevis to ISO 8140, in galvanised steel, for ISO 6432 mini cylinders and ISO 15552 cylinders: sizes from G-12-16 to G-80-100 selectable among the variants.
