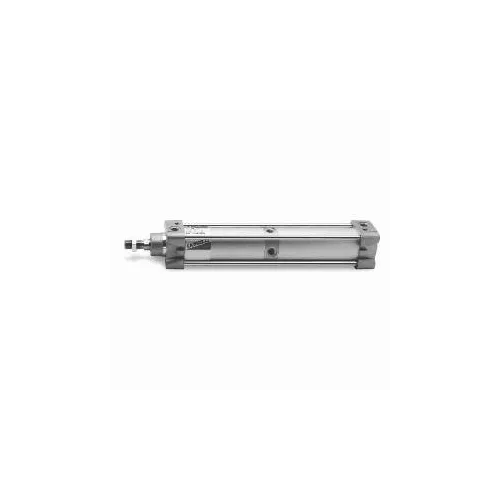

CAMOZZI CYLINDER BORE 32 STROKE 50 MAGNETIC

Code: CL42M2N032A50
€84.20
VAT excluded: €69.02
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

Magnetic Pneumatic Cylinder Camozzi Series 42 Bore 32 Stroke 50 - Item No. 42M2N032A0050


Camozzi pneumatic cylinder 42M2N032A0050 of the Series 42, double-acting and magnetic, with 32 mm bore and 50 mm stroke. It is a compact tie-rodless cylinder with crimped construction, with AISI 304 stainless steel barrel, 12 mm AISI 420B stainless steel rod and anodised aluminium end caps. It has adjustable pneumatic cushioning on both end caps plus a mechanical cushion, for soft stops at the end of the stroke. G1/8 ports, rod thread M10x1.25, pressure from 1 to 10 bar. The magnetic piston allows sensors to be fitted with the S-CST-18 adapter. Supplied with ring nut and rod nut.

Technical Specifications

  • Type: Double-acting, magnetic cylinder
  • Series: 42
  • Bore: 32 mm
  • Stroke: 50 mm
  • Cushioning: Adjustable pneumatic and mechanical
  • Ports: G1/8
  • Rod: AISI 420B stainless steel, Ø12 mm, M10x1.25 thread
  • Barrel: AISI 304 stainless steel
  • Operating pressure: 1 to 10 bar
  • Temperature: 0 to 80 °C (from -20 °C with dry air)
  • Item No.: 42M2N032A0050
  • Brand: CAMOZZI

Applications and Uses

  • Compact tie-rodless actuators
  • Thrust, clamping and positioning
  • Automatic machines, test benches and pneumatic panels

More details

Brand
CAMOZZI
Code
CL42M2N032A50
Manufacturer code
42M2N032A0050
