STELLA BIANCA ANNULAR CUTTER WELDON SHANK

Code: UT175412 EAN: 8014249284116
€31.40
VAT excluded: €25.74
Size : 12X50
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

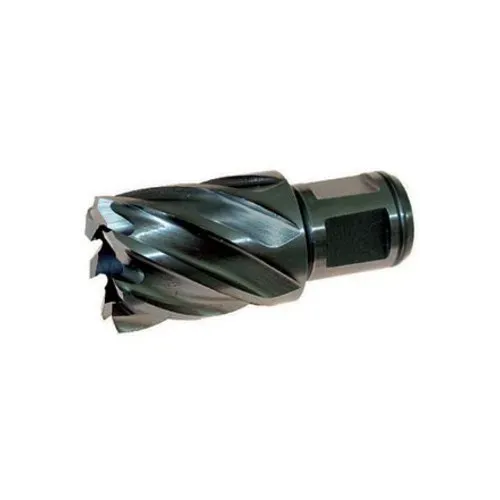

Stella Bianca HSS Annular Cutter with 19 mm Weldon Shank for Magnetic Drills - Item No. 038


Stella Bianca annular cutter of the 038 series with a 19 mm Weldon shank, the standard of magnetic base drills, for making holes in thick plate, tubes, beams and sections, also on the pillar drill. The cutters with a 30 mm cutting depth (total height 61 mm) and those of 50 mm (series 038L, total height 86 mm) are in machined and ground HSS M2 steel, with a hardness of 64/65 HRC, a 4.5 mm wall thickness, side chip relief and a fully re-sharpenable profile. They work steel, iron, cast iron, bronze and brass. The family includes diameters from 12 to 50 mm and, among the variants, the pilot pin, the Quick adapter and the MK2 fitting. For the variants with 25 and 55 mm depth and those with the Quick IN fitting, please ask us to confirm the data.

Technical Specifications

  • Type: Annular cutter for magnetic drills
  • Shank: Weldon 19 mm
  • Material: HSS M2 (depths 30 and 50 mm)
  • Hardness: 64/65 HRC
  • Wall thickness: 4.5 mm
  • Total height: 61 mm (cutting depth 30) / 86 mm (cutting depth 50)
  • Available sizes: diameters from 12 to 50 mm, cutting depth 25, 30, 50 or 55 mm according to the diameter (selectable among the variants)
  • Accessories among the variants: pilot pin, Quick adapter, MK2 fitting
  • Item No.: 038
  • Brand: STELLA BIANCA

Applications and Uses

  • Through holes in beams and structural sections
  • Drilling thick plate and tubes
  • Work on steel, cast iron, bronze and brass

More details

Brand
STELLA BIANCA
Code
UT175412
EAN13
8015519380545
Manufacturer code
038L012
