FERVI 0518/20 MAGNETIC DRILL

FERVI 0518/20 MAGNETIC DRILL

€857.70
VAT included Delivery in 24/48 hours
Quantity
local_shipping AVAILABLE

1 item

Fervi magnetic drill item 0518/20 with liquid cooling, drilling capacity ø 20 mm, Weldon shank ø 19.05 mm, 900W motor, magnetic force 8500 N. Weight 18.5 kg.

Guarantee safe & secure checkout

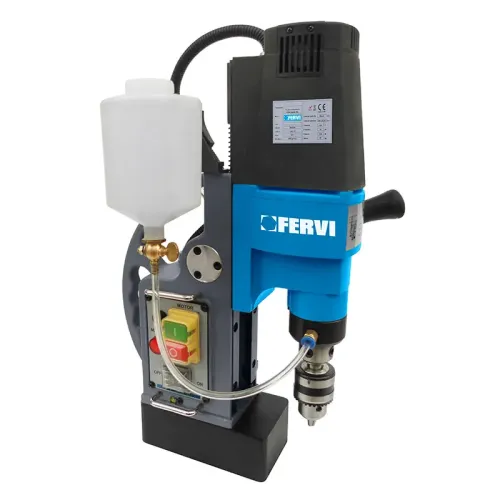

Fervi 0518/20 Magnetic Drill

Fervi magnetic base drill item 0518/20 with liquid cooling, for core cutters up to ø 20 mm with Weldon shank ø 19.05 mm and cylindrical drill bits up to ø 20 mm with reduced shank ø 13 mm. Magnetic base with a force of 8500 N for stable anchoring on ferromagnetic surfaces, usable horizontally and vertically. Single-phase motor 230V 900W, spindle speed 650 rpm, stroke 165 mm. Manual rack-and-pinion feed with three-arm lever. Supplied in a carry case. Weight 18.5 kg. Fervi brand, Vignola (Modena).

Technical Specifications

  • Type: Magnetic base drill
  • Item: 0518/20
  • Max drilling capacity: ø 20 mm
  • Shank: Weldon ø 19.05 mm
  • Rack-and-pinion chuck: ø 13 mm
  • Spindle stroke: 165 mm
  • Max magnetic force: 8500 N
  • Spindle speed: 650 rpm
  • Motor: 230V 50Hz 0.9 kW single-phase
  • Cooling: Liquid
  • Dimensions: 300 x 260 x 450 mm
  • Weight: 18.5 kg
  • Brand: FERVI

Applications And Uses

  • Precision drilling on metal structures and steelwork
  • Work on steel beams, sheets and sections
  • Construction sites, plant installation and industrial maintenance
UE051820
1 item

Specific References

EAN13
8012667276935
MPN
0518/20
