IN-LINE SOCKET CE 3P+T 16A 380V

Code: CE39012 EAN: 8056131005775
€4.30
VAT excluded: €3.52
In stock 15 pieces in stock Ships in 24/48 hours

Description

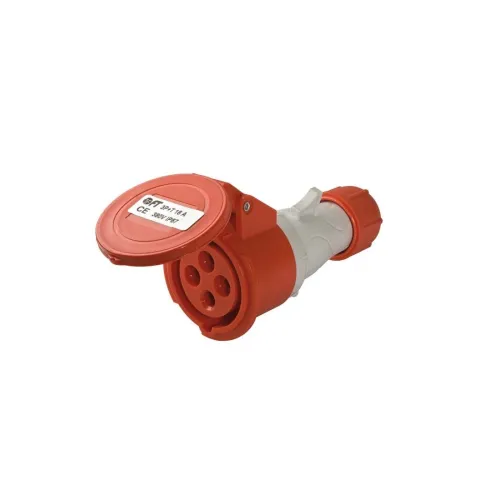

CEE In-Line Socket 16 A 3P+T 400 V - Item No. 9224


CEE industrial in-line socket, 16 A, 3P+T (three poles plus earth), for a 400 V supply. Mobile socket (series 11), four-pole, for three-phase power with earth. The terminal accepts cables with an outer diameter of 6 to 15 mm and flexible cross-sections of 1 to 2.5 mm². The manufacturer ROSI declares that its industrial plugs and sockets comply with standards EN 60309 (IEC 309, CEI 23-12) and have IK08 impact resistance. It is the standardised connector for linking machines, site distribution boards and industrial extension leads with CEE sockets and plugs of the same type.

Technical Specifications

  • Type: CEE industrial in-line socket
  • Current: 16 A
  • Poles: 3P+T (three poles plus earth)
  • Voltage: 400 V
  • Standard: EN 60309-1 and 60309-2 (CEI 23-12)
  • Impact resistance: IK08
  • Item No.: 9224
  • Brand: ROSI

Applications and Uses

  • Connecting mobile machines
  • Electrical distribution on building sites
  • Workshops and industrial buildings

More details

Brand
ROSI
Code
CE39012
EAN13
8056131005775
Manufacturer code
9224

Recommended accessories and spare parts

IN-LINE PLUG CE 3P+T 16A 380V

€3.30
AVAILABLE
Availability: 4 In stock

CEE industrial in-line plug 16 A 3P+T, 400 V, EN 60309 standard, IK08 impact resistance. From the ROSI catalogue, item no. 9214, for machines and site distribution boards. If in doubt, contact us.
