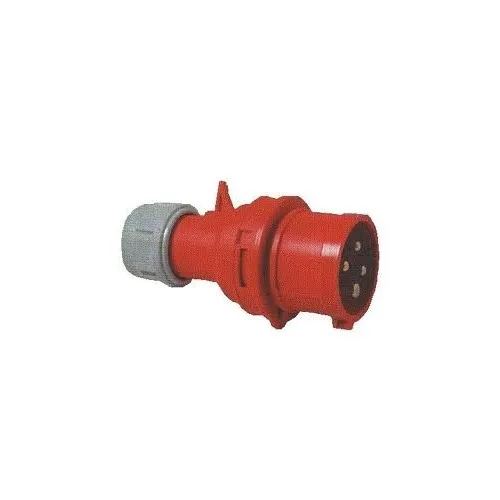

IN-LINE PLUG CE 3P+T 32A 380V IP 44

Code: CEDIX9414 EAN: 8033509916000
€7.10
VAT excluded: €5.82
In stock 13 pieces in stock Ships in 24/48 hours

Description

CEE In-Line Plug 32 A 3P+T 400 V - Item No. 9414


CEE industrial in-line plug, 32 A, 3P+T (three poles plus earth), for a 400 V supply. Mobile plug (series 10), four-pole, for three-phase power with earth. The IP degree of protection is to be confirmed: the name indicates IP 44, while the ROSI catalogue places the 32 A plugs in the IP66/IP67 block. The terminal accepts cables with an outer diameter of 11.5 to 21 mm and flexible cross-sections of 2.5 to 6 mm². ROSI industrial plugs and sockets meet standards EN 60309 (IEC 309, CEI 23-12), with IK08 impact resistance declared by the manufacturer. For the safe connection of tools, distribution boards and site extension leads, with CEE sockets and plugs of the same current and the same number of poles.

Technical Specifications

  • Type: CEE industrial in-line plug
  • Current: 32 A
  • Poles: 3P+T (three poles plus earth)
  • Voltage: 400 V
  • Standard: EN 60309-1 and 60309-2 (CEI 23-12)
  • Degree of protection: to be confirmed
  • Impact resistance: IK08
  • Item No.: 9414
  • Brand: ROSI

Applications and Uses

  • Electric machines and tools
  • Industrial extension leads
  • Events and set-ups

More details

Brand
ROSI
Code
CEDIX9414
EAN13
8033509916000
Manufacturer code
9414

Recommended accessories and spare parts

IN-LINE SOCKET 3P+T 32A 380V

€6.30
AVAILABLE
Availability: 5 In stock

CEE industrial in-line socket 32 A 3P+T, 400 V, EN 60309 standard, IK08 impact resistance. From the ROSI catalogue, item no. 9524, for machines and site distribution boards. If you are unsure which to choose, write to us.
