INVESTMENT CAST STAINLESS STEEL HANDRAIL 3-WAY ANGLE FITTING — TUBE 22/25MM

Code: RX821122
€9.50
VAT excluded: €7.79
Size : HOSE 22
In stock 3 pieces in stock Ships in 24/48 hours

Description

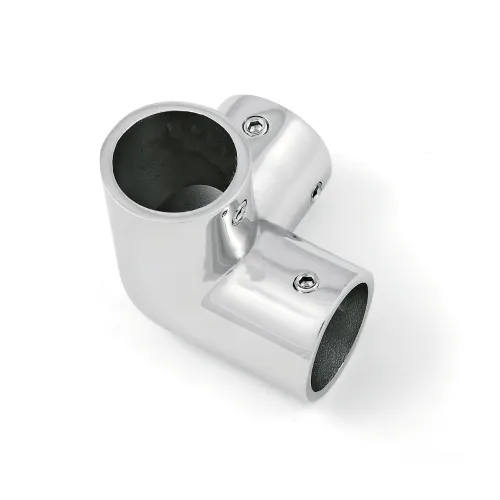

3-Way Corner Connector Investment Cast for AISI 316 Stainless Steel Handrail - Item No. 8211


Fitting in investment cast, polished AISI 316 (A4) stainless steel, designed for building handrails and deck guards with 22 or 25 mm tube. The three-way corner connector joins three tubes at a corner point and allows structures to be built with uprights and crossbars. The tube is locked with DIN 914 M6x5 mm grub screws. It is ordered in the version for 22 or 25 mm tube, selectable from the variants. The manufacturer reports small dimensional variations from batch to batch: for this reason it is advisable to drill after checking the piece received.

Technical Specifications

  • Type: Three-way corner connector
  • Material: AISI 316 (A4) stainless steel, investment cast, polished
  • Tube: 22 or 25 mm, to be chosen from the variants
  • Item No.: 8211
  • Brand: INOX MARE

Applications and Uses

  • Handrails on board
  • Bow and stern pulpits
  • Deck fittings

More details

Brand
INOX MARE
Code
RX821122
Manufacturer code
8211 22

Recommended accessories and spare parts

NYLON CUP FOR AWNINGS — D.22

€1.42
AVAILABLE
Availability: 12 In stock

Nylon socket cup for awnings, for 22 mm tubes, item no. 8139. It is fixed with screws and holds the end of the frame tube. If you are unsure which to choose, write to us.

Reviews (0)
No customer reviews for the moment.
