INVESTMENT CAST STAINLESS STEEL RECTANGULAR BASE 60° — TUBE 22/25MM

Code: RX820422
€12.50
VAT excluded: €10.25
Size : HOSE 22
In stock 6 pieces in stock Ships in 24/48 hours

Description

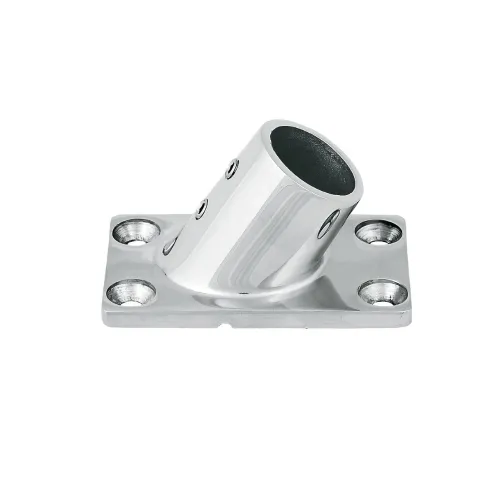

Rectangular Investment Cast 60 Degree Base for AISI 316 Stainless Steel Handrail - Item No. 8204


Component for handrails and pulpits in AISI 316 (A4) stainless steel, investment cast and polished, for mounting tubes of 22 or 25 mm diameter. The rectangular 60 degree base tilts the tube and, thanks to the elongated plate, adapts to points where the space for fixing is limited. The tube is locked with DIN 914 M6x5 mm grub screws. The tube diameter, 22 or 25 mm, is selected from the variants. As the manufacturer warns, the dimensions may vary slightly from one batch to another: it is best to drill only after receiving the piece. The AISI 316 (A4) grade is the one recommended for marine use: the molybdenum it contains improves resistance to corrosion in the presence of salt water and spray.

Technical Specifications

  • Type: Rectangular 60 degree base
  • Material: AISI 316 (A4) stainless steel, investment cast, polished
  • Tube diameter: 22 or 25 mm, selectable from the variants
  • Item No.: 8204
  • Brand: INOX MARE

Applications and Uses

  • Handrails on board
  • Bow and stern pulpits
  • Stainless steel boat outfitting

More details

Brand
INOX MARE
Code
RX820422
Manufacturer code
8204 22
