Description

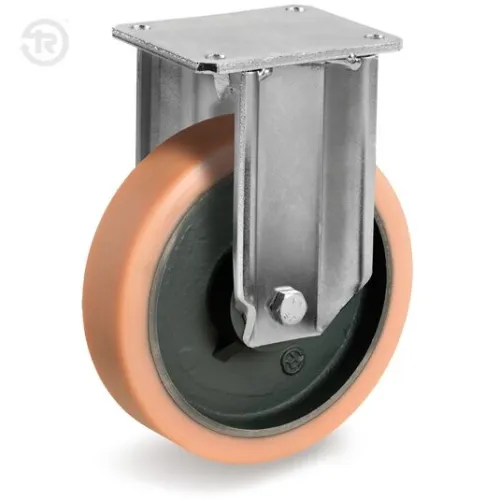

Tellure Rota Series 63 GH Vulkollan Wheel with Extra-Heavy Bracket - Item No. 638856
Tellure Rota series 63: Vulkollan covering of 93 Shore A, highly resistant to wear, tearing and deformation, on a mechanical cast iron or forged steel core. Version in 200x50 mm diameter, series 63 GH, on EP extra-heavy bracket: galvanised forged steel plate and fork, axial ball and tapered roller bearing. The bracket has a maximum load capacity of 1,600 daN; the wheel load capacity is 1,000 daN at 4 km/h and 800 daN at 6 km/h. Diameters of 150 and 200 mm are chosen from the variants. With suitable brackets they are recommended for heavy handling up to 16 km/h. The manufacturer designs and tests the wheels according to the international industry standards ISO 22880 and UNI EN 12529, and declares RoHS and REACH compliance.
Technical Specifications
- Type: Wheel with extra-heavy bracket
- Covering: Vulkollan 93 Shore A
- Core: Mechanical cast iron (63GH) or forged steel (63AC)
- Diameters: 150 and 200 mm
- Bracket: Extra-heavy EP, maximum load capacity 1,600 daN
- Operating temperature: from -20 to +80 °C
- Item No.: 638856
- Brand: TELLURE ROTA
Applications and Uses
- Trolleys for heavy loads
- Intensive industrial handling
- Workshop and warehouse equipment
More details
- Brand
- TELLURE ROTA
- Code
- RUFW150L
- EAN13
- 8007554060155
- Manufacturer code
- 638854
