Tellure Rota galvanised backing plate in two sizes, 100x85 and 140x110 mm, for wheel plate brackets. It strengthens the fixing of the bracket to the structure, item no. 110401.
Tellure Rota series 65AL wheel, TR polyurethane 92 Shore A (wheel with swivel plate bracket), item no. 659312. NL-type swivel plate bracket, diameters from 80 to 200 mm, 220 daN at diameter 150.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

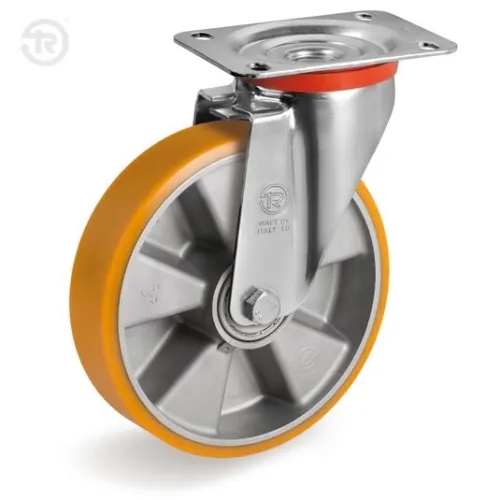

Polyurethane Wheel with Aluminium Core Tellure Rota Series 65 AL with Swivel Plate - Item No. 659312
Tellure Rota series 65 AL: 92 Shore A TR polyurethane covering resistant to wear and tearing, die-cast aluminium core and hub on shielded ball bearings. Version with swivel plate bracket, of the light NL type with a maximum load capacity of 300 daN. In the 150 mm diameter, with a 100x85 mm plate, the load capacity is 220 daN. The diameters range from 80 to 200 mm. Choose the diameter from the available variants. Suitable for medium and high loads and for mechanical handling up to 6 km/h, in industrial environments, even with alcohols, glycols and hydrocarbons. For the range, the manufacturer declares design to ISO 22880 and UNI EN 12529 and compliance with the RoHS and REACH directives.
Technical Specifications
- Type: Wheel with swivel plate bracket
- Covering: TR polyurethane 92 Shore A
- Core: Die-cast aluminium
- Diameters: from 80 to 200 mm
- Bracket: Swivel plate, light NL type
- Operating temperature: from -20 to +80 °C
- Item No.: 659312
- Brand: TELLURE ROTA
Applications and Uses
- Industrial handling with medium to high loads
- Trolleys for workshops and warehouses
- Environments with alcohols, glycols and hydrocarbons
More details
- Brand
- TELLURE ROTA
- Code
- RU659301
- EAN13
- 8007554033869
- Manufacturer code
- 659301
