FEMI N251 DAXL THREE-PHASE BANDSAW 2480MM

Code: UEN251DAXL EAN: 8025191804994
€3,316.00
VAT excluded: €2,718.03
Out of stock Usually ships within 10 days

One email when it comes back. No advertising.

Description

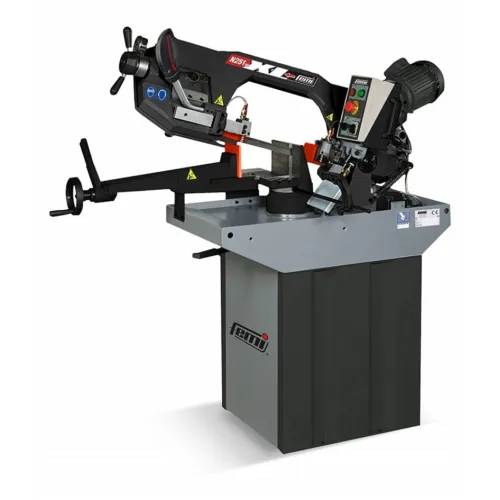

Femi N251 DAXL Three-Phase Bandsaw with Stand - 2480 mm Blade


Femi industrial bandsaw model N251 DAXL, XL line, with stand, three-phase 400V power supply. Femi is a leading Italian brand in metal cutting machines. Fitted with a powerful 2-speed three-phase induction motor (750/1100W) with oil-lubricated gearbox, it guarantees exceptional performance even for intensive use. Arm with automatic hydraulically controlled descent with adjustable flow, quick-clamping vice and cast iron swivel unit for great robustness. Sliding steel blade guide with bearings and pressure gauge for checking blade tension, a task made easier by the large front handwheel. Front lever for releasing the swivel unit built into the base and lubrication pump with aluminium body. Supplied with 2480x27x0.9 mm blade, lubrication oil tank, lubrication pump, bar stop rod for repeat cuts, service spanners, blade cleaning brush, hydraulic cylinder with adjustable flow and stand in assembly kit.

Technical Specifications

  • Type: Industrial bandsaw with stand
  • Model: N251 DAXL
  • Power supply: 400V three-phase - 50Hz
  • Motor power: 750/1100W (2 speeds)
  • Blade: 2480 x 27 x 0.9 mm, 6/10 Z/1" teeth
  • Blade speed: 45/90 m/min
  • Arm descent: Automatic with hydraulic control
  • Cutting capacity 0°: Rectangular 240x160 mm, Round 225 mm, Square 185x185 mm
  • Cutting capacity 45°: Rectangular 135x185 mm, Round 150 mm, Square 145x145 mm
  • Cutting capacity 60°: Rectangular 63x107 mm, Round 70 mm, Square 70x70 mm
  • Structure: Cast iron arm, vice and swivel unit
  • Lubrication: Yes, with dedicated pump
  • Packaging: 1385 x 580 x 890 mm
  • Weight: 200 kg
  • Brand: FEMI

Applications and Uses

  • Cutting of steel and metal sections, tubes and bars
  • Machine shops and metal fabrication
  • Industrial production and repeat cutting
  • Intensive professional work on iron and metals

More details

Brand
FEMI
Code
UEN251DAXL
EAN13
8025191804994
Manufacturer code
8488050
