FEMI 220V 2200 XL BANDSAW+2140 STAND BLADE

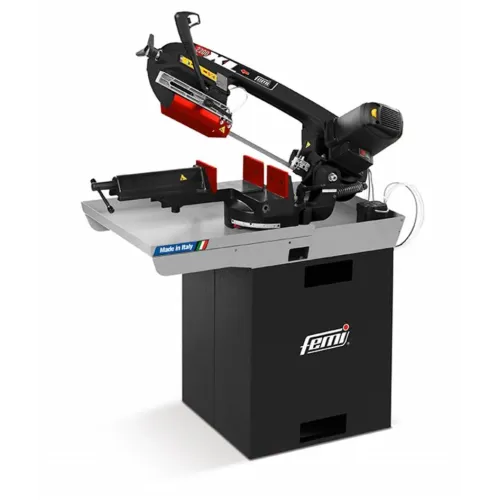

Femi 2200 XL 230V Bandsaw with Stand - 2140 mm Blade

Femi 2200 XL industrial bandsaw with stand, made of die-cast aluminium, 230V supply. Driven by a powerful 2000W single-phase universal motor fitted with a "Constant Speed" digital electronic speed regulator with current limiter. Fitted with a blade tensioner with indicator light and a safety micro-switch for checking blade integrity. Cast iron vice with quick-slide system, front graduated scale and quick-locking device. Front sliding blade guide and manually adjustable arm descent, with a balancing system protected by an anti-drop compression spring. Low-voltage (24V) control panel with undervoltage coil and thermal-magnetic motor protection. Integrated and protected cutting fluid system to ensure continuity and cutting performance. Filter for suppressing electromagnetic interference, compliant with current regulations. Supplied with a cobalt bi-metal blade, developed length 2140x19x0,9 mm, and stand in assembly kit.

Technical specifications

• Type: Industrial bandsaw with stand
• Model: 2200 XL
• Motor power: 2000W
• Supply: 230V - 50Hz
• Blade: 2140 x 19 x 0.9 mm, 6/10 Z/1" tooth pitch, cobalt bi-metal
• Blade speed: 35÷80 mt/min, Constant Speed electronic adjustment
• Arm descent: Manual
• Cutting capacity 0°: Rectangular 200x75 mm, Round 175 mm, Square 175x175 mm
• Cutting capacity 45°: Rectangular 150x110 mm, Round 110 mm, Square 110x110 mm
• Cutting capacity 60°: Rectangular 100x70 mm, Round 75 mm, Square 75x75 mm
• Vice: Quick-locking cast iron
• Lubrication: Integrated system
• Dimensions: 780 x 1240 x 1080 mm
• Weight: 140 kg
• Brand: FEMI

Applications and uses

• Cutting of steel and metal profiles, tubes and bars
• Mechanical workshops and metal fabrication
• Construction and manufacturing industry
• Intensive professional work on iron and metals
