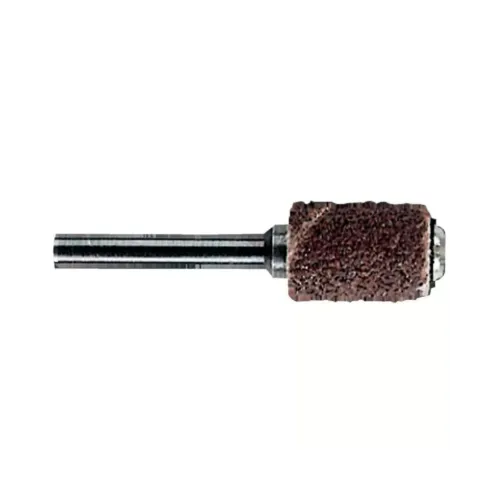

DREMEL ACCESSORY ART.439

The Dremel 196 is a high-speed cylinder cutter (carving/engraving bit) of 6.4 mm for rotary tools, designed for carving, shaping, grooving and material removal in detail work on wood, plastic and similar materials. It is ideal for shaping, creating profiles and precise engraving, offering optimum control in precision work.

Technical data:

• Type: high-speed cylinder cutter for carving/engraving

• Model: 196 / 26150196JA

• Working diameter: 6.4 mm

• Shank diameter: 3.2 mm (1/8″)

• Accessory length: ~38 mm

• Material: high-speed steel (High Speed Steel)

• Recommended maximum operating speed: up to ~30 000 – 35 000 rpm

• Compatibility: Dremel rotary tools and multi-tools with 3.2 mm chuck

Pack quantity:

• 1 × Dremel 196 cutter

Technical applications:

• Shaping and carving of wood, plastic, laminates and similar materials

• Creating grooves, profiles, hollows and holes on flat or curved surfaces

• Engraving and decoration of soft materials

The Dremel TR 562 is a cutting accessory specific to Dremel TRIO tools, designed to make cuts in ceramic wall tiles, plasterboard and cement boards with precision and control. It is suitable only for use with the Dremel TRIO system and is not compatible with standard rotary multi-tools.

Technical data:

• Type: cutting bit for wall tiles/panels

• Model: TR 562

• Fitting: 4.8 mm shank (compatible with Dremel TRIO system)

• Working diameter: 3.2 mm

• Accessory length: approx. 52 mm (overall size)

Applications: cutting of ceramic wall tiles, plasterboard and cement boards; suitable for shaping and fitting around sockets, profiles or pipework during installations and renovations.

The Dremel 26159929JA, also identified as accessory 9929, is a diamond engraving bit designed to work with the Dremel 290 engraver and compatible rotary tools. Thanks to its diamond-coated head, it offers longer life and wear resistance compared with standard bits, allowing harder materials such as glass and stainless steel to be engraved with precision and control.

Technical data:

• Type: diamond engraving bit

• Model: 9929 / 26159929JA

• Bit material: diamond / diamond coating

• Bit diameter: ~3 mm

• Overall length: ~20 mm

• Tool compatibility: Dremel 290‑1 / 290‑3 Hobby engraver and multi-tools with a chuck suitable for engraving

• Quantity per pack: 1 diamond bit

Technical use:

• Engraving of glass, ceramic, marble, stainless steel and hard materials

• Creating thin lines, grooves and precise details on difficult surfaces

• Suitable for craft projects, model making and precision work

The Dremel 442 is a carbon steel brush for rotary tools, designed to clean and remove rust, oxidation and surface residues from metal surfaces. The cup shape and metal bristles provide effective abrasive action on flat surfaces and gentle contours, leaving a clean matt finish ready for further work.

Technical data:

• Type: carbon steel brush for cleaning and deburring

• Model: 442

• Bristle material: carbon steel

• Working diameter: 13.0 mm

• Shank diameter: 3.2 mm (1/8″, compatible with most Dremel chucks)

• Accessory length: approx. 50 mm

• Shape: cup/rotary brush

• Recommended maximum operating speed: up to 15 000 rpm

• Compatibility: Dremel rotary tools and compatible multi-tools with 3.2 mm fitting

Technical applications:

• Removal of rust, oxidation and corrosion from metal surfaces

• Cleaning and deburring of metal components and joints

• Rough polishing and matt finishing before further treatments

• Cleaning of electrical contacts, instruments and mechanical parts

The Dremel 453 is an aluminium oxide abrasive grinding wheel designed for use with rotary multi-tools, specifically for sharpening the teeth of saw chains with finer or precision profiles. Thanks to its small diameter and sturdy abrasive structure, it allows you to restore the cutting angle and increase the sharpness of the teeth with control and precision, even in confined spaces.

Technical data:

• Type: abrasive grinding wheel for sharpening saw chains

• Model: 453

• Working diameter: approx. 3.2 mm

• Shank diameter: 3.2 mm (standard shank for rotary multi-tools)

• Abrasive material: aluminium oxide

• Shape: cylindrical / suited to the chain profile

• Accessory length: approx. 50 mm

• Recommended maximum operating speed: up to 30 000 rpm

• Compatibility: Dremel rotary tools and multi-tools with 3.2 mm chuck

Technical applications:

• Sharpening of chainsaw chain teeth with a finer profile.

• Use with sharpening guides or spacers to maintain consistent angles between the teeth.

• Restoring sharpness on toothed profiles for clean cuts and more effective performance.

The Dremel 454 is an aluminium oxide abrasive grinding wheel designed for use with Dremel-type rotary multi-tools, specifically for sharpening the teeth of saw chains, guides and metal profiles. Thanks to its compact diameter and sturdy construction, it allows you to restore the angle and sharpness of the chain teeth with control and precision.

Technical data:

• Type: abrasive grinding wheel for sharpening saw chains

• Model: 454

• Working diameter: approx. 4.8 mm

• Shank diameter: 3.2 mm (standard multi-tool)

• Abrasive material: aluminium oxide

• Shape: cylindrical / for contact with the chain profile

• Accessory length: approx. 50 mm

• Maximum operating speed: up to 30 000 rpm

• Compatibility: Dremel rotary tools and multi-tools with 3.2 mm chuck

Technical applications:

• Sharpening of chainsaw chain teeth to restore sharpness and cutting performance.

• Use with sharpening guides or spacers to maintain consistent angles between the teeth.

• Preparing the chain for cleaner and safer cuts.

The Dremel 7103 is a 2 mm diamond ball bit for rotary tools, designed for engraving, carving and precision detail work on particularly hard or tough materials. The coating of diamond particles gives greater surface hardness and better performance than traditional abrasive accessories, making it suitable for many finishing applications.

Technical data:

• Type: diamond ball bit for engraving/carving

• Model: 7103

• Working diameter: 2.0 mm

• Shank diameter: 3.2 mm

• Accessory length: 45.0 mm

• Material: steel with diamond coating

• Shape: spherical → allows concave engraving, grooves and detailed relief work

• Recommended maximum operating speed: up to approx. 25 000 rpm

• Quantity: set of 2 diamond bits

• Compatibility: Dremel rotary tools and multi-tools with a 3.2 mm accessory chuck

Typical applications:

• Precision engraving and carving on glass, ceramic and porcelain

• Shaping and touching up on hardened metal and wood

• Detail work on hard and brittle materials

• Finishing and decorating work for hobbyists and professional projects

The Dremel 4486 is a keyless self-tightening chuck for rotary tools, designed to allow quick and easy accessory changes without the use of collets or tightening spanners. Thanks to the direct grip (keyless) system, it is particularly useful when bits, grinding wheels, brushes or other accessories with shanks from 0.8 mm to 3.2 mm need to be changed frequently.

Technical data:

• Type: keyless self-tightening chuck

• Model: 4486

• Accessory acceptance range: 0,8 – 3.2 mm (shank)

• Clamping type: keyless (quick grip without collet)

• Material: sturdy steel/metal alloy

• Accessory length: 15.0 mm

• Width: 15.0 mm

• Height: 22.0 mm

• Maximum operating speed: up to 35 000 rpm

• Compatibility: Dremel rotary tools with standard chuck and 0,8 – 3.2 mm accessories; can also be used with the 225 flexible shaft and the 575 right angle attachment.

Main features:

• Quick clamping of accessories without collets or pliers.

• Accepts bits, grinding wheels, brushes and other accessories with a small shank in a single solution.

• Ideal for work requiring numerous accessory changes.

Technical applications:

• Quick change of drill bits and milling cutters during drilling and milling.

• Fitting of cutting discs, grinding wheels and brushes for cutting, sanding or cleaning operations.

• Use with light accessories where fast changing without tools is required.

The Dremel 443 is a set of replacement collets for rotary tools, designed to ensure correct clamping of bits and accessories of standard diameters. Each collet fits into the chuck of the multi-tool to match the shank size of the accessory, providing a stable grip and control in precision work.

Technical data:

• Type: set of replacement collets for rotary tools

• Model: 443

• Contents: 3 × collets

  • 0.8 mm

  • 1.6 mm

  • 2.4 mm

• Compatibility: Dremel rotary multi-tools and compatible models with a standard chuck for 0,8 – 2.4 mm collets

• Material: sturdy metal for a secure grip and long life

• Clamping diameter: suitable for the standard Dremel collet nut

• Use: allows you to secure bits, cutters, grinding wheels and accessories of matching diameters

• Installation: they are inserted into the chuck and tightened with the nut/chuck to lock the accessory

• Technical applications:

  • Fitting of bits with a small shank for drilling and engraving

  • Clamping of accessories for sanding, grinding and cutting

  • Better control and stability when working on wood, metal, plastic and composite materials

The Dremel 535 is a stiff-wire steel brush for rotary tools, designed for removal of rust, oxidation, old paint and surface deposits from metals and hard surfaces. The circular construction with steel bristles provides aggressive and effective cleaning while maintaining control and precision in detail work.

Technical data:

• Type: circular steel brush for cleaning and deburring

• Model: 535

• Working diameter: approx. 9.5 mm

• Shank diameter: 3.2 mm (standard for rotary multi-tools)

• Bristle material: tempered steel

• Shape: circular “brush-type” brush

• Overall accessory length: approx. 48 mm

• Recommended maximum operating speed: up to 15 000 – 20 000 rpm

• Compatibility: rotary tools with 3.2 mm chuck

Typical applications:

• Removal of rust and oxidation from metal surfaces

• Cleaning of ferrous parts before painting or welding

• Deburring and finishing of metal joints

• Surface preparation of hard metal materials

• Rough polishing of surfaces after abrasive machining

The Dremel 540 is a set of universal cutting discs for rotary multi-tools, designed mainly for straight cutting of metal and also suitable for wood, plastic, light masonry and composite materials. The discs cut along the edge only and are to be fitted to the tool with the 402 screw mandrel.

Technical data:

• Type: cutting discs for rotary multi-tool

• Model: 540

• Quantity: set of 5 pieces

• Working diameter: 32.0 mm

• Disc thickness: 1.6 mm (typical)

• Shank diameter: 3.2 mm

• Max. cutting depth: 14.0 mm

• Maximum operating speed: ≤ 35 000 rpm

• Shape: thin disc

• Fixing: with 402 screw mandrel

Workable materials: metal (steel, stainless steel, aluminium, copper, brass), sheet metal, bolts/screws, plastic, thin wood, panels, plasterboard and light building materials.

Technical applications:

• Making straight cuts in metal and thin materials

• Cutting bolts, screws and sheet metal without the need for larger tools

• Sectioning plastic materials and light panels with control

Set of 6 EZ SpeedClic abrasive discs designed for sanding and shaping operations on surfaces and edges, with the EZ SpeedClic mounting system, which allows quick, tool-free replacement of accessories. The discs are suitable for relatively soft and medium-hard materials and are used with a compatible SpeedClic mandrel/mount.

Technical data:

• Type: EZ SpeedClic abrasive discs for sanding and shaping

• Model: SC411

• Working diameter: 30 mm

• Fitting diameter (shank): 3.2 mm

• Grit: 60 (medium abrasive)

• Quantity: 6 discs

• Mounting system: EZ SpeedClic – quick tool-free change

• Tool compatibility: compatible with Dremel SpeedClic chuck (e.g. SC402)

• Applications: sanding of flat surfaces and edges, material removal on wood, plastic, soft metals and other comparable materials

The Dremel SC402 pin mount is an EZ SpeedClic chuck designed for use with Dremel rotary tools and the EZ SpeedClic system, which allows accessories such as cutting discs and abrasive discs to be fitted and changed quickly without the use of spanners. This accessory makes changing elements faster than with a standard chuck and supports the high rotation speeds suited to multi-tools.

Technical data:

• Type: chuck / pin mount EZ SpeedClic

• Model: SC402

• Shank diameter: 3.2 mm

• Accessory length: 38 mm

• Maximum operating speed: 35,000 rpm

• Accessory change system: EZ SpeedClic – quick tool-free change (Pull–Twist–Release)

• Compatibility: Dremel rotary tools with SpeedClic fitting (for mounting specific discs and compatible accessories)

The Dremel 455 accessory is an aluminium oxide abrasive wheel designed to quickly sharpen the teeth of chainsaw chains using compatible rotary tools. This accessory is intended to be used together with the Dremel chainsaw sharpening kit or standalone to restore the sharpness of chains, increasing efficiency and service life.

Technical data:

• Type: abrasive wheels for saw chain sharpening

• Model: 455

• Working diameter: ~5.6 mm

• Shank diameter: 3.2 mm

• Abrasive material: aluminium oxide

• Shape: cylindrical

• Accessory length: approx. 50 mm

• Recommended maximum operating speed: up to 30 000 rpm

• Quantity: sets of multiple wheels available in variants (with/without spacers)

• Compatibility: rotary tools with 3.2 mm chuck and chain sharpening accessories

Technical applications:

• Sharpening the teeth of the chain of chainsaws with precision and control, guiding the tool in line with the recommended sharpening angles.

• Use with guides and spacers to improve results and keep the teeth uniform.

The Dremel 482 is a clamping collet for Dremel rotary tools, designed to hold securely bits and accessories with a thin 1.6 mm (≈ 1/16") shank. This type of collet ensures a secure grip of the accessory in the chuck, improving precision and stability during drilling, milling, engraving or other detail operations. It is part of the range of interchangeable collets used to adapt the tool to different accessory diameters.

Technical data:

• Type: clamping collet for rotary tools

• Model: Item 482

• Supported shank diameter: 1.6 mm (≈ 1/16″) (for accessories with a thin shank)

• Material: hard-wearing metal for a secure grip

• Compatibility: Dremel rotary tools with standard chuck (including use with flexible shaft)

• Use: secures the accessory in the chuck for precision work

• Installation: fits into the chuck and is tightened with the multi-tool's clamping nut

Technical applications:

• Holding 1.6 mm bits for drilling, engraving, milling or sanding on materials such as wood, metal or plastic.

• Improves stability and control in detail and precision applications.

The Dremel 723 is a complete 100-piece multi-purpose accessory set designed for use with Dremel rotary multi-tools and other compatible tools with a 3.2 mm chuck. This kit of genuine accessories offers a wide range of components for cutting, sanding, grinding, polishing, cleaning and milling on materials such as wood, metal, plastic and more, making it ideal for DIY projects, workshop use and precision work (also ideal as a starter kit for getting started with the rotary tool).

• Detailed contents – Dremel 723 (100 pieces)

  Mandrels and basic bits

  • 1 × drill bit 150

  • 1 × screw mandrel 401

  • 1 × screw mandrel 402

  • 1 × EZ SpeedClic SC402 mandrel for SpeedClic discs

  Milling / Engraving

  • 1 × high-speed cutter 191

  Grinding stones

  • 1 × aluminium oxide grinding stone Ø 9.5 mm 932

  • 1 × aluminium oxide grinding stone Ø 9.5 mm 952

  • 1 × silicon carbide grinding stone Ø 4.8 mm 84922

  Cutting / grinding wheels and discs

  • 36 × cutting discs Ø 24 mm 409

  • 3 × EZ SpeedClic cutting discs for metal (SC456)

  • 10 × abrasive discs Ø 38 mm 411

  • 8 × abrasive discs Ø 38 mm 413

  Sanding / grinding with bands

  • 1 × sanding band mandrel Ø 6.4 mm + band 430

  • 4 × bands Ø 6.4 mm grit 60 431

  • 4 × bands Ø 6.4 mm grit 120 438

  • 1 × sanding band mandrel Ø 13 mm 407

  • 3 × bands Ø 13 mm grit 60 408

  • 4 × bands Ø 13 mm grit 120 432

  Cleaning / polishing

  • 10 × polishing wheels Ø 13 mm 414

  • 5 × polishing wheels Ø 26 mm 429

  • 1 × bristle brush Ø 19 mm 403

  • 1 × polishing compound 421

  Milling, engraving and detailed work
