Description

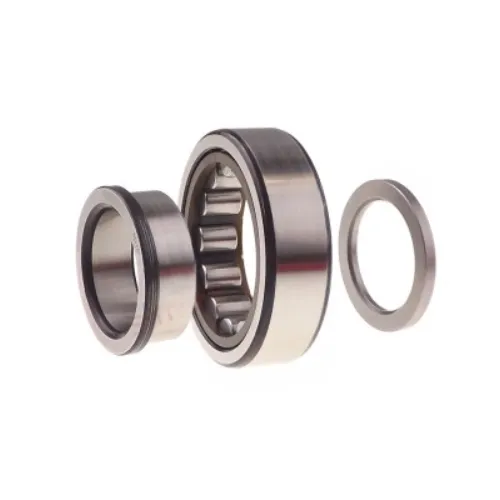

FAG NUP 23XX Series Cylindrical Roller Bearings - Item No. NUP2314-E-XL-TVP2
The FAG (Schaeffler) NUP 23XX series brings together type NUP radial bearings with a single row of cylindrical rollers, with solid rings and rollers spaced by the cage. Thanks to the cage, rotation speeds can be higher than in full-complement roller versions. As a fixed bearing, the NUP guides the shaft in both axial directions: outer ring with two flanges, inner ring with one flange and a loose washer. For the same size, cylindrical roller bearings have higher basic load ratings than ball bearings, so they are chosen where radial loads are heavy. Reference item of the range: NUP2314-E-XL-TVP2.
Technical Specifications
- Construction: Single row of cylindrical rollers with cage, solid rings
- Type: NUP, series NUP 23XX
- Function: fixed bearing, axial guidance in both directions
- Rings: outer with two flanges, inner with flange and washer
- Mounting: Separable rings, interference fit
- Cage: polyamide with glass fibre (TVP2), among the versions
- Item No.: NUP2314-E-XL-TVP2
- Brand: FAG (Schaeffler)
Applications and Uses
- Machine tools and drive spindles
- Machines for processing metals and plastics
- Pumps, fans and compressors
More details
- Brand
- FAG
- Code
- CUINUP2314
- EAN13
- 4012801389655
- Manufacturer code
- NUP2314-E-XL-TVP2
