ISB H 2XX series adapter sleeves for bearings with tapered bore: combined with a locknut and lock washer, they make mounting and dismounting easier. Sizes from H 204.
FAG NU 23XX series, type NU (Item No. NU2320-E-XL-TVP2): single-row cylindrical roller bearings, solid rings and cage, for heavy radial loads and high rigidity. Schaeffler group. Sizes can be selected among the variants.
- Free shipping In Italy on orders from €99.00
- Returns within 14 days How it works
- Secure payments PayPal, cards, Klarna, bank transfer
- WhatsApp support 371 342 6056
Description

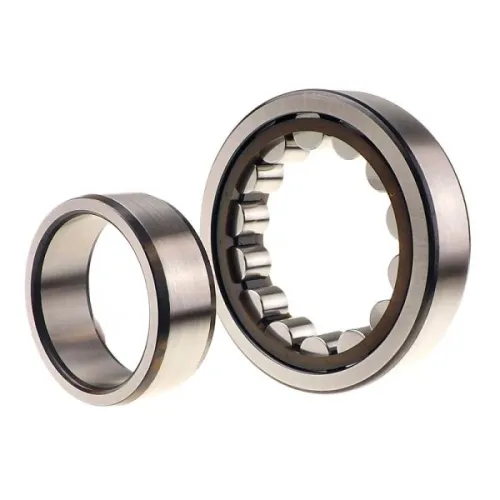

FAG NU 23XX Series Cylindrical Roller Bearings - Item No. NU2320-E-XL-TVP2
NU structure: two flanges on the outer ring, plain inner ring. No axial guidance, internal length compensation, typical use as the floating side of the shaft. Range NU series NU 23XX: FAG single-row cylindrical roller bearings with cage, designed for heavy radial loads on a rigid structure. Among the versions present is the E-XL one with glass-fibre reinforced polyamide cage (TVP2): reinforced roller set (E) and X-life quality (XL), with raceways of reduced roughness and more precise form. Reference item of the range: NU2320-E-XL-TVP2.
Technical Specifications
- Type: Cylindrical rollers, type NU
- Dimensional series: NU 23XX (sizes selectable among the variants)
- Cage: reinforced polyamide (TVP2) in one of the versions
- Load: very high radial; axial limited by the flanges
- Rings: outer with two flanges, inner plain
- Function: floating bearing, compensates for length
- Item No.: NU2320-E-XL-TVP2
- Brand: FAG (Schaeffler)
Applications and Uses
- Handling lines and conveyor belts
- Electric motors and industrial gearboxes
- Transmissions with heavy radial loads
More details
- Brand
- FAG
- Code
- CUINU2304
- EAN13
- 4012801179652
- Manufacturer code
- NU2304-E-XL-TVP2
